Capillary thermostat

adjustablewall-mountedcompact

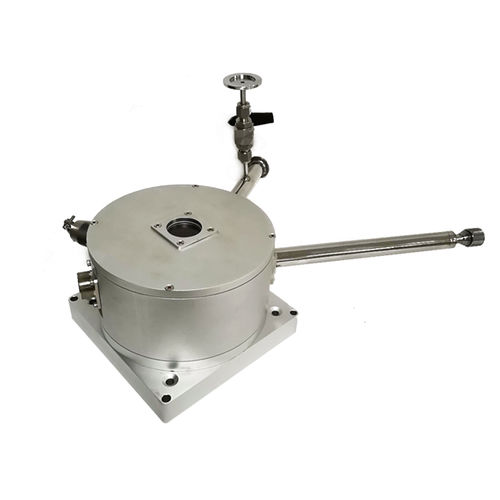

Liquid nitrogen (helium) thermostat - continuous flow is mainly suitable for cooling liquids, powders, samples with poor thermal conductivity and irregular shapes. The Dexinmag continuous flow liquid nitrogen (helium) thermostat is a thermostat for samples in flowing steam. It can effectively cool samples that are difficult to thermally anchor, have poor thermal conductivity, or have irregular shapes. When in use, the low-pressure refrigerant enters the interior of the thermostat from the infusion pipe through the liquid inlet, and then enters the evaporation amplifier inside the thermostat through the pre-laid low-temperature heat leakage capillary inside the thermostat. A heater and temperature controller are installed on the evaporator. Sensor, the temperature-controlled steam is injected into the sample chamber. The steam after cooling the sample is discharged into the atmosphere through the air outlet or into a gas recovery device to achieve secondary utilization of the gas. This type of continuous flow thermostat is still designed to load the sample at the top. The overall design of the thermostat is compact and cooperates with the magnets and brackets produced by Dexinmag to facilitate placement in the magnetic field and at the same time obtain a larger magnetic field.
