Digital gaussmeter DX-160

teslameteranalog

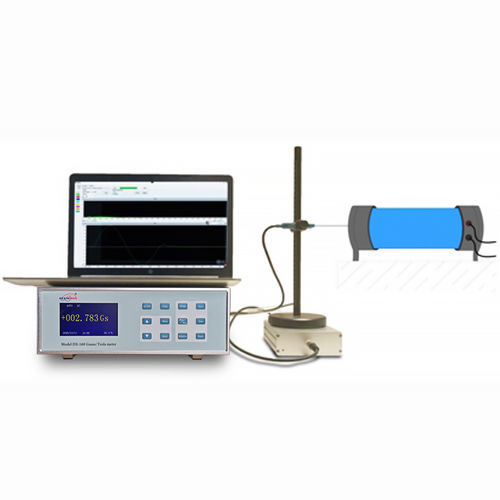

The Pulse Magnetic Field Measurement System combines a DX-160 Gaussmeter, a high-speed signal collector and dedicated software to capture, display and analyze pulsed magnetic field signals in real time.

System composition

• DX-160 Gaussmeter (main measuring instrument)
• Probe sensor (Hall probe)
• High-speed acquisition / signal collector (network-capable data collector)
• Computer with dedicated acquisition and analysis software

Key features

• DX-160 Gaussmeter: measures and displays up to 6 parameters simultaneously; selectable units (Gauss, Tesla, A/m or Oe); bright VGA color graphics with full-menu operation and 5 ¾-digit readings; high resolution (up to 1/600000) for observing weak changes (e.g. 0.0001 mT)
• High measurement range: capable of measuring up to ±100 KGs (10 T)
• Instrument storage: large-capacity internal memory with historical data review and upload to a PC via RS-232
• Signal collector: high-precision A/D (24-bit) with wide dynamic range; configurable sampling frequency (settable with 1 Hz resolution); supports wired and wireless network transmission; can collect and store data autonomously; supports parallel multi-unit synchronous acquisition (optional synchronous clock interface)
• Software functions: customizable acquisition frequency; automatic pulse capture and alarm thresholds; selectable channels with waveform viewing and zoom; real-time display of current / min / max values; time-domain and frequency-domain graphs; record and export data to Excel

Characteristics / specifications techniques

• Model: DX-160
• Range: ±100KGs (10 T)
• Range gear switching (Auto): 0.6 mT, 30 mT, 300 mT, 3 T, 10 T
• DC Resolution (by range): 0.6 mT → 0.01 µT; 30 mT → 0.0001 mT; 300 mT → 0.001 mT; 3 T → 0.01 mT; 10 T → 0.1 mT
• AC Resolution: 0.1 Gs / 10 µT
• Accuracy (display value): DC: ±0.20% of reading ± 0.05% of range (0–2 T); AC: ±1% of reading ± 0.5% of range
• Frequency: DC – 50 kHz
• Analog output: ±3 V F.S.
• Connectors: Standard BNC
• Probe temperature coefficient: −(0.02% ± 1 count)/°C
• Probe temperature compensation coefficient: −(0.007% ± 1 count)/°C
• Temperature range: Working 0°C to 50°C; Storage −20°C to 60°C
• Panel display: 320 x 240 pixels, 3.5-inch full-view color screen
• Communication interface: RS-232, standard 9-pin D-type connector
• Supply power: Voltage: 200/240 V; Frequency: 50–60 Hz
• Signal collector (high-level summary): A/D resolution 24 bit; accuracy 0.01% (full scale); sampling rate options up to 500 kHz/channel (options include 1 MHz or 50 kHz); selectable input ranges ±2.5 V, ±5 V, ±10 V; 8 DI / 8 DO TTL compatible; 100 M Ethernet port (TCP/IP)
