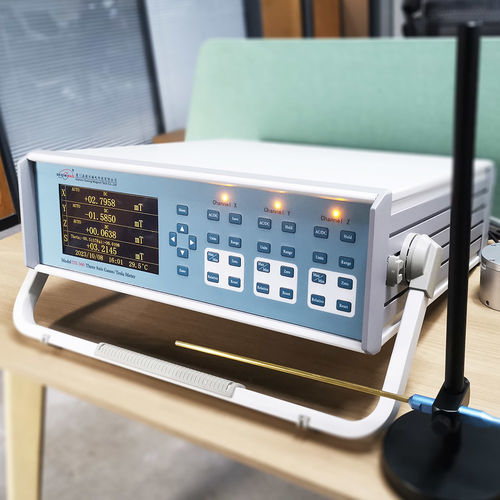

Teslameter gaussmeter portablehand-heldUSB
Add to favorites
Compare this product
Characteristics
- Options
- digital, portable, teslameter, hand-held, USB, desktop, analog
Description
Product overview
Key features
Model parameters (excerpt)
Technical specifications
Applications
- The Dexinmag Gauss meter (teslameter) is a magnetometer system combining Hall probes and a measuring instrument to quantify magnetic induction in AC and DC fields, residual magnetism and geomagnetic fields. Available in handheld, benchtop and multi‑axis probe configurations for 1D/2D/3D measurements.
Key features
- Measures AC and DC magnetic fields, radiation magnetic fields, residual magnetism and Earth magnetic field; selectable units: Gs, mT, μT, A/m, Oe.
- Hall probe sensors including GaAs linear Hall chips for high linearity and low temperature drift.
- Handheld, desktop and multi‑dimensional (1D/2D/3D) configurations; many models support replaceable probes.
- Functions include auto‑zero, auto‑range, peak/valley/hold modes, unit selection and programmable options on selected models.
- Some models provide high‑frequency AC measurement capability (up to 100 kHz) and high‑precision analog outputs.
Model parameters (excerpt)
- DX-102 — Range: ±3 T; Frequency: DC; Resolution: 0.01 mT; Accuracy: ±1% of reading; Programmable: No; Dimension: 1D (handheld).
- DX-102F — Range: ±3 T; Frequency: DC–AC; Resolution: 0.01 mT; Accuracy: DC: ±1% of reading ±0.05% of range; AC: ±3% of reading ±0.5% of range; Programmable: Yes; Dimension: 1D (handheld).
- DX-103 — Range: ±2 T; Frequency: DC–AC; Resolution: 0.01 mT; Accuracy: ±1% of reading ±0.05% of range; Programmable: No; Dimension: 1D.
- DX-1205F — Range: ±3 T; Frequency: DC; Resolution: 0.001 mT; Accuracy: ±0.45% of reading ±100 μT; Programmable: Yes; Dimension: 1D.
- DX-150 — Range: ±3 T; Frequency: DC–AC up to 30 kHz; Resolution: 0.01 mT; Accuracy: DC: ±0.3% of reading ±0.05% of range; AC: ±2% of reading ±0.5% of range; Programmable: Yes; Dimension: 1D.
- DX-160 — Range: ±10 T; Frequency: DC–AC up to 50 kHz; Resolution: 0.01 μT; Accuracy: DC: ±0.2% of reading ±0.05% of range; AC: ±1% of reading ±0.5% of range; Programmable: Yes; Dimension: 1D.
- DX-180 — Range: ±30 T; Frequency: DC–AC up to 100 kHz; Resolution: 0.01 μT; Accuracy: DC: ±0.05% of reading ±0.005% of range; AC: ±1% of reading ±0.5% of range; Programmable: Yes; Dimension: 1D.
- DX-210 — Range: ±30 T; Frequency: DC–AC up to 100 kHz; Resolution: 0.01 μT; Accuracy: DC: 1D ±0.05% of reading ±0.005% of range; 2D ±0.1% of reading ±0.005% of range; AC: ±1% of reading ±0.5% of range; Programmable: Yes; Dimension: 2D.
- DX-350 — Range: ±3 T; Frequency: DC; Resolution: 0.001 mT; Accuracy: ±0.45% of reading ±0.005% of range; Programmable: Yes; Dimension: 3D.
- DX-360 (3‑Axis) — Range: ±30 T; Frequency: DC–AC up to 100 kHz; Resolution: 0.01 μT; Accuracy: DC: 1D ±0.05% of reading ±0.005% of range; 2D ±0.1% of reading ±0.005% of range; 3D ±1% of reading ±0.005% of range; AC: ±1% of reading ±0.5% of range; Programmable: Yes; Dimension: 3D.
Technical specifications
- Manufacturer: Dexinmag (Xiamen Dexing Magnet Tech. Co., Ltd.).
- Standard supply: each gaussmeter is supplied with a standard Hall probe; many models support replaceable probes and adapters.
- Probe types: transverse (thin rectangular), axial (cylindrical), flexible (ultra‑thin), two‑dimensional and three‑dimensional probes for spatial field measurement.
- Probe technology: GaAs Hall sensors with sensitive area ≈0.1×0.1 to 0.2×0.2 mm², linearity maintained to ±0.05% (0–3 T) and temperature drift <0.015%/°C for high‑end probes.
- Packaging: metal housings recommended for DC/low‑frequency AC (brass preferred among non‑ferrous metals); non‑metallic housings preferred for high‑frequency AC to avoid eddy‑current errors.
- Typical measurement units: Gs, mT, μT, A/m, Oe; analog outputs available on some models (e.g. ±3.0 V).
Applications
- Permanent magnet surface testing, DC motor and magnetic separator field tests, geomagnetic measurement, aerospace and military testing, research and academic laboratories, and industrial magnetic diagnostics.
