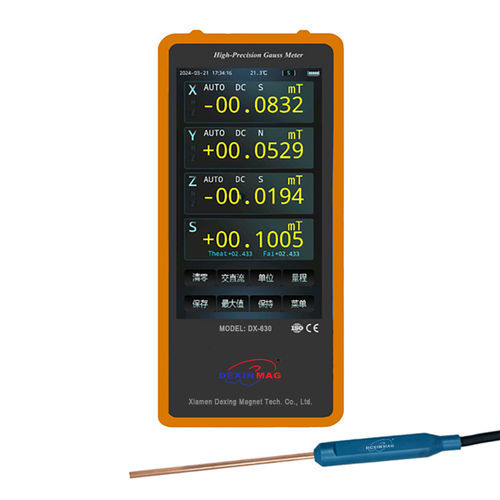

Digital gaussmeter DX-630

hand-heldportableUSB

Introduction
Dexinmag has developed an ultra-small Hall sensor with an ultra-wide operating temperature range, high linearity (max 0.01%) and high sensitivity (active area 0.028 mm). The device integrates a patented 3D probe orthogonal angle correction (orthogonality deviation ≤ 0.1°). The host incorporates professionally designed analog and digital circuitry (ARM Cortex 32-bit MCU) and patented ultra-low-loss sampling (ULLASS) for high-quality weak-signal acquisition. The instrument features a high-definition large display with wide viewing angle and a capacitive touch user interface. The product complies with ISO9001, CE and IQNET certifications.

Features

• Capacitive touchscreen with adjustable backlight
• AC/DC magnetic field measurement
• 3D probe orthogonality correction algorithm
• 5 3/4-digit reading resolution
• Intelligent auto-range switching and manual range selection
• FFT analysis and time-domain curve display
• Bluetooth BLE (10 Hz) for wireless data transfer
• Intelligent probe recognition (auto-detect probe type)
• High-speed / low-speed measurement modes
• Display of measured values and curves including vector/3D values and spherical coordinates
• Analog output via BNC (±3 V)
• Extreme/maximum display and peak hold
• Ultra-low noise design
• Threshold detection with 3D alarm thresholds and multiple alarm modes (None / Within Range / Outside Range)
• Data storage (single or continuous), callback and export
• USB-C (TYPE-C) data communication; general instruction set (supports LabVIEW)

Technical parameters (summary table rows shown with line breaks)
Total Range: ±500kGs (50 T)
Test Dimensions: One-dimensional, two-dimensional, three-dimensional (X, Y, Z)
Measurement Method: Auto (automatic range switching) / Manual
Ranges (mT): 30; 300; 3000; 30000; 50000
Resolution (DC): 0.0001 mT; 0.001 mT; 0.01 mT; 0.1 mT; 0.1 mT (per range)
Resolution (AC): 0.1 Gs / 10 μT
Accuracy (DC / 3D & ranges): 3D - ±0.1% ±0.005% of reading (0.01–0.05 T); 3D - ±0.05% ±0.005% (0.05–2.5 T); 3D - ±0.5% ±0.005% (2.5–5 T); 3D - ±1% ±0.005% (5–50 T); AC - ±1% ±0.5% of reading (0–50k)
AC Bandwidth: 50 kHz
3D Correction Orthogonality Error: ≤ 0.1°
Probe temperature coefficient: -(0.02% ±1 count)/°C
Probe temperature compensation coefficient: -(0.007% ±1 count)/°C
Unit conversion: 1 T = 1000 mT; 1 mT = 1000 μT; 1 Gs = 1 Oe; 1 mT = 10 Gs; 1 Gs = 79.8 A/m
Dimensions (host): 187 × 82 × 28 mm
Weight: 362.8 g
Color: Obsidian Black

General specification (selected)
Analog interface: BNC ±3 V
Communication interface: TYPE-C (USB-C), Bluetooth BLE (10 Hz)
Power supply: Two 18650 batteries in parallel
Power consumption: 4.2 W
Continuous operation: ≈ 5 hours
Adaptor probe options: 3D, 2D, 1D probes (room / high / low temperature variants); probe length and array probe customizable; optional internal probe temperature sensor

Interface and Functions
Measurement interface displays 3D magnetic field value, vector magnetic field, deflection/tilt angles, range, AC/DC mode, field direction, units, time, probe ID and battery level. Touch controls include zeroing, AC/DC switch, unit switch, range switch, data save, max/min display, screen hold and menu. Menu settings: threshold settings, version info, curve viewing, communication settings, device settings, calibration, and save/view. Curve functions: time-domain plotting, peak detection and FFT spectrum display. Device settings: time, backlight mode/brightness, buzzer on/off, language and selectable filtering methods (average, sliding, none). Host software supports recording/plotting, automatic probe calibration/host auto memory, automatic zero/range, threshold alarm and selectable display units (e.g., milligauss, nanotesla).

Adapted probes and options
Conventional 3D Hall probe family (examples and typical probe parameters provided on the product page). Probe series include 3ADX801F / 3ADX802F / 3ADX803F / 3ADX804F / 3ADX805F and square variants 3ADX806F / 3ADX807F with varying active area diameters, frequency range (DC–1 kHz), full range up to 300 kG, accuracy classes, packaging (round or square brass), and operating temperature ranges -10°C to +75°C.

Technical characteristics

• Model / Denomination: DX-630 (host)
• Total magnetic range: ±500 kGs (50 T)
• Measurement modes: 1D / 2D / 3D (X, Y, Z); AC/DC
• Range steps (mT): 30, 300, 3000, 30000, 50000
• DC resolutions by range: 0.0001 mT / 0.001 mT / 0.01 mT / 0.1 mT / 0.1 mT
• AC resolution: 0.1 Gs / 10 μT
• 3D orthogonality correction error: ≤ 0.1°
• Probe temp coefficient: -(0.02% ±1 count)/°C; compensation: -(0.007% ±1 count)/°C
• AC bandwidth: 50 kHz
• Analog output: BNC (±3 V)
• Communication: USB-C (TYPE-C) and Bluetooth BLE (10 Hz)
• Power: Two 18650 batteries (parallel), ~4.2 W consumption, ~5 h continuous
• Physical: 187×82×28 mm; 362.8 g; Obsidian Black
• Certifications: ISO9001, CE, IQNET
