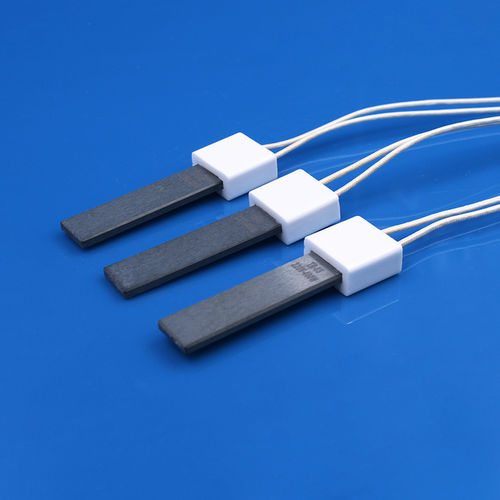

Ceramic igniter

for pellet boilers

Silicon nitride ceramics have the characteristics of high strength, high-temperature resistance, thermal shock resistance, oxidation resistance, wear resistance, and corrosion resistance, and are the first candidate materials for ceramics used in thermal engine parts. The silicon nitride ceramic igniters can heat up to 800~1000°C within ten seconds, and ignite the fuel through direct heat transfer or blast heat transfer. A temperature buffer area is set on the ignition rod to protect the terminals from damage. The wire joints are insulated and encapsulated, which can effectively prevent short circuits caused by conductive ash. With proper installation and ignition procedures, silicon nitride ceramic igniters can be used safely for years. Application fields: Biomass boiler igniter, straw incinerator igniter Gas and oil igniters (such as natural gas) Automobile exhaust and industrial waste gas treatment Gas heating (air, working gas) Pyrotechnic generator Brazing equipment Corrosive environment heater Customization of laboratory special heating elements and heating systems
