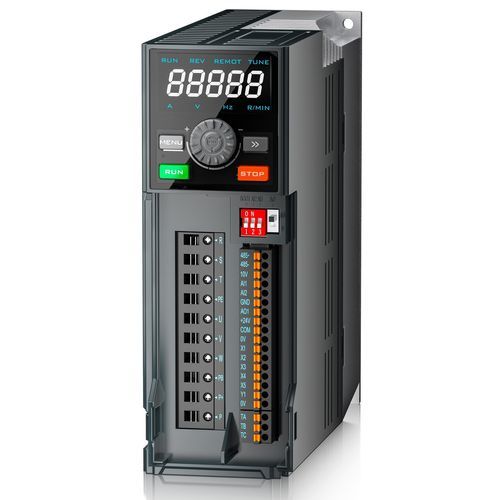

Synchronous frequency inverter VHL series

asynchronousthree-phasesingle-phase

Product overview
The VHL series open-loop vector frequency inverter features a book-style (narrow) chassis that reduces volume by approximately 30% and installation area by around 70% versus the previous generation. It uses IGBT integrated modules and supports 150% overload output for 1 minute. The series includes a standard braking function, an independent air duct design and a strengthened three-proof coating meeting 3C3 (reference 3S2) for reliable operation. Plug-in fan design and support for an external LCD panel simplify maintenance and commissioning. CE certified.

Product features

• Overload output — IGBT integrated modules deliver 150% rated output for 1 minute; standard braking function enables controlled, extended stop of driven equipment.
• Book-style structural design — narrow chassis reduces unit volume by ~30% and installation footprint by ~70% compared with the previous generation.
• Easy and fast commissioning — flying-shuttle type keypad for straightforward speed adjustment; silicone keypad for improved tactile feedback; supports external LCD panel for one-click parameter upload/download.
• Stable and reliable — strengthened three-proof paint coating to meet environmental requirements (3C3 and referenced 3S2); independent air duct improves thermal reliability.
• Plug-in fan — removable plug-in fan for quick replacement and reduced maintenance time.
• Certification — compliant with EU CE certification.

Technical specifications

• Series name: VHL
• Topology: General open-loop vector frequency inverter
• Power devices: IGBT integrated modules
• Overload capability: 150% rated output for 1 minute
• Braking function: Standard
• Structural design: Narrow/book-style body; independent air duct
• Protection/coating: Strengthened three-proof paint, meets 3C3 (and referenced 3S2) environmental standards
• Installation area reduction: ~70% versus previous generation
• Volume reduction: ~30% versus previous generation
• Human interface: Flying-shuttle keypad, silicone keypad; supports external LCD panel for parameter upload/download
• Maintenance: Plug-in fan for easy replacement
• Certifications: EU CE
