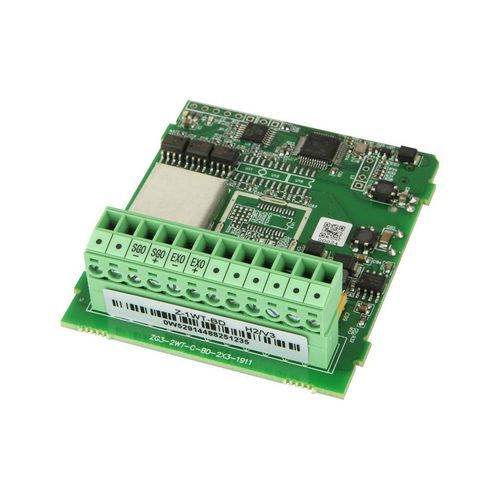

Bus expansion module Z-NES-BD

for fieldbusI/OCANopen

Overview
The Z series BD expansion board connects directly to ZG and ZP series integrated controllers to provide additional I/O and functional interfaces. ZP1 does not support BD boards. ZP2 supports one BD board and ZP3 supports two. Use the BD board to add digital inputs/outputs, analog inputs/outputs, temperature inputs, weighing interfaces and communication ports to compatible controllers.

Key features

• Supported types: digital I/O, analog I/O, temperature inputs, weighing interfaces, communication ports
• Mounting: rear-mounted on the integrated controller to avoid additional cabinet space
• Expansion capacity: ZP2 and ZG support 1 BD board; ZP3 supports 2 BD boards; ZP1 not supported

Applicable controllers / compatibility

• Compatible with ZG series integrated controllers
• Compatible with ZP series integrated controllers (ZP1 excluded)

Related documents

• ZG3 series BD board manual (see product page for manuals and BD board documentation)
• Integrated controller catalog — ZG & ZP (catalog of compatible integrated controllers)

Specifications

• Functions: digital I/O, analog I/O, temperature inputs, weighing interfaces, communication ports
• Mounting location: directly on back of integrated controller
• Expansion support: ZP2 and ZG support 1 BD board; ZP3 supports 2 BD boards; ZP1 not supported
• Product family: Z series BD expansion module for ZG/ZP integrated controllers
