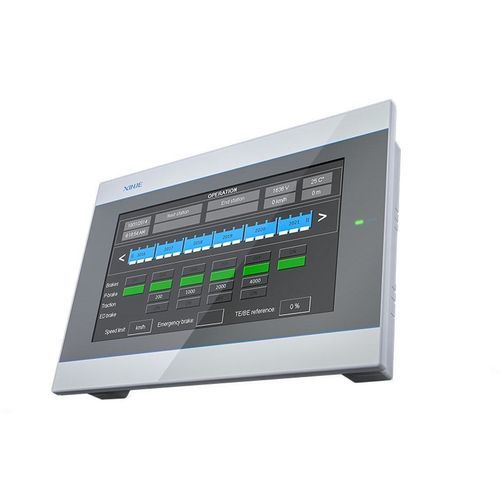

HMI with touch screen TS5

panel-mountSolo / Dual core ARM® Cortex™-A7LAN

Product overview
The XINJE TS5 series IoT human-machine interface delivers core IoT capabilities to support centralized monitoring, remote maintenance and multi-system information exchange on modern industrial sites. It enables remote troubleshooting, multi-terminal visualization and flexible protocol connectivity to address diverse production requirements.

Key features

• High performance: ARM Cortex-A7 processor (1.2GHz / 1.0GHz options) with 256 MB onboard memory and large-capacity storage.
• No gateway required: optional WiFi or 4G for wireless networking; optional XINJE IoT network card is plug-and-play (no authentication activation required); supports online renewal/recharge/invoicing.
• Seamless XINJE Cloud integration: centralized device monitoring, data storage and alarm push; usable as a data source in X-Data for BI analysis and on-site visualization screens.
• Fast IT/OT data transmission: supports mainstream protocols such as MQTT, TCP/IP and OPC UA.
• CODESYS label communication support: API via XINJE Cloud Intelligent Manufacturing enables rapid third-party system integration to facilitate IT/OT convergence.
• VNC remote desktop support: monitor HMI images in real time and perform control from PC or mobile devices.
• Remote transparent transmission: download PLC programs via Ethernet/4G/WiFi without dependence on physical download cables or interfaces.
• Multiple upload/download methods: Type-C, USB flash drive, LAN or remote program transfer.
• TS5D video surveillance support: streaming media, preset playback, audio support and network camera connection for targeted remote monitoring.

Applications / benefits

• Centralized monitoring and remote maintenance of production equipment.
• Multi-terminal visualization and diversified protocol interfacing for heterogeneous systems.
• On-site visualization, alarm push and historical data storage through cloud connectivity.

Technical specifications

• Processor: ARM Cortex-A7 (1.2GHz / 1.0GHz options).
• Memory: 256 MB on-board; large-capacity storage.
• Wireless connectivity: optional WiFi and 4G; optional XINJE IoT network card (plug-and-play).
• Cloud integration: Compatible with XINJE Cloud for device monitoring, data storage and alarm push; integrable with X-Data for BI analysis.
• Protocols supported: MQTT, TCP/IP, OPC UA and other mainstream industrial protocols.
• Third-party integration: API interface for CODESYS label communication and other integrations.
• Remote access: VNC remote desktop for PC/mobile real-time control and monitoring.
• Program transfer: remote transparent transmission via Ethernet/4G/WiFi; upload/download via Type-C, USB flash drive or LAN.
• Video: streaming media playback, preset video playback, network camera support and audio-enabled surveillance.
