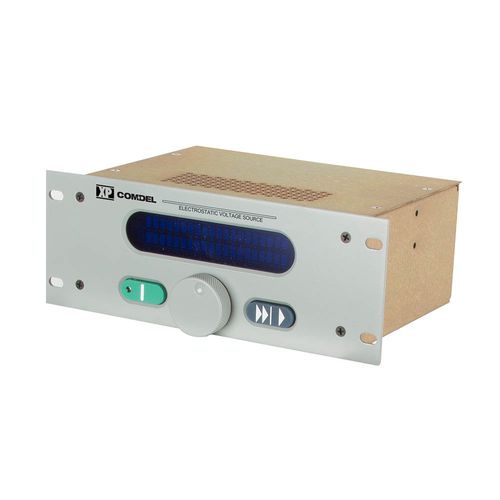

DC/DC power supply ESC series
analogbuilt-in

DC/DC power supply
DC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
DC/DC
Other characteristics
analog, built-in
Power

Max.: 20 W

Min.: 4 W

Input voltage

Max.: 25.2 V

Min.: 22.8 V

Output voltage

Max.: 7.5 kV

Min.: 0 kV

Description

High Voltage DC-DC ESC Series Short circuit and open circuit proof design for enhanced reliability Built-in RF filtering available Output to input isolation: > 500 MΩ Output regulation: 1% Output voltage range: 1kV – 15kV Output current range: 100μA – 10mA Auto-polarity reverse Auto-discharge Analog / RS232 / DeviceNet (option)
