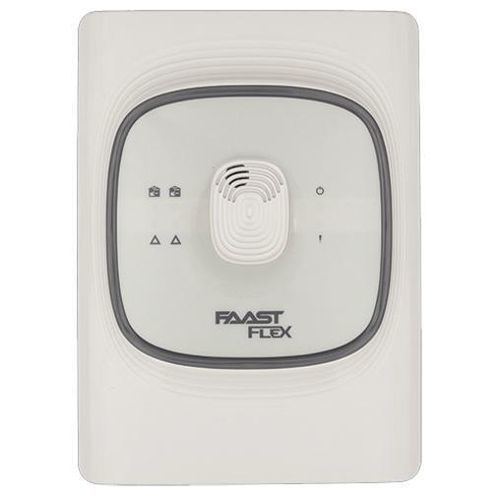

Suction type smoke detector FAAST FLEX™

suctionwirelessfor indoor use

Product Overview
Small and medium businesses (SMBs) require reliable fire protection while minimising downtime and cost. The FAAST FLEX™ Aspirating Smoke Detector (ASD) delivers flexible, easy-to-install aspirating detection suitable for enhanced and standard sensitivity applications across a range of SMB environments, from small warehouses and elevator shafts to refrigerated storage and transformer rooms.

Model Numbers
Model Nos. FLX-010, FLX-020

Features

• Single & Dual channel variants with area coverage up to 1,600 m² (single channel) and up to 2,000 m² (dual channel)
• Two configuration modes:
  • Out-of-box commissioning with built-in user-friendly control for rapid setup
  • Extended mode with Bluetooth interface for advanced configuration and diagnostics
• Modular design with in-field replaceable chamber, filter and aspirator for simplified servicing
• Bluetooth connectivity and mobile App for extended configuration and rapid diagnostics
• Quiet operation (~45 dB(A)) with adjustable fan speed
• Operational down to -40 °C (-40 °F) for cold storage applications
• Ingress protection: IP40

Applications

• Small to medium warehouses
• Refrigerated storage facilities
• Elevator shafts
• Ceiling and underfloor voids
• Transformer and electrical rooms
• Low-noise environments

Certifications & Approvals

• VdS
• EN 54-20, ISO 7240:20
• CE
• NF-SSI
• CCC
• ActivFire
• IFT: HOXTFL23 – 13169
• ANATEL
• RAMATEL
• BOSEC
• PBST
• FCC
• RED

Available Documents (selected)

• FAAST FLEX Product Guide
• FAAST FLEX Data Sheet
• FAAST FLEX Product Brochure
• FAAST FLEX Product Bulletin
• FAAST FLEX Engineering Specifications
• FAAST FLEX Refrigerated Design Guide
• FAAST FLEX Lift/Shaft Application Note
• FAAST FLEX Double Knock and Redundancy Application Note
• FAAST FLEX Noise Emission Levels Application Note
• FAAST FLEX FAQs
• FAAST FLEX Firmware Update / Release Notes
• CPR Certificate and various approval certificates

Technical Specifications

• Channel variants: single and dual channel
• Area coverage: up to 1,600 m² (single channel) and up to 2,000 m² (dual channel)
• Configuration modes: out-of-box commissioning; extended mode via Bluetooth
• Serviceability: modular design with in-field replaceable chamber, filter and aspirator
• Connectivity: Bluetooth interface and mobile App for configuration and diagnostics
• Acoustic: quiet operation at approximately 45 dB(A); adjustable fan speed
• Operating temperature: suitable down to -40 °C (-40 °F)
• Ingress protection: IP40
• Typical SMB applications: warehouses, refrigerated storage, elevator shafts, voids, transformer/electrical rooms, low-noise environments
