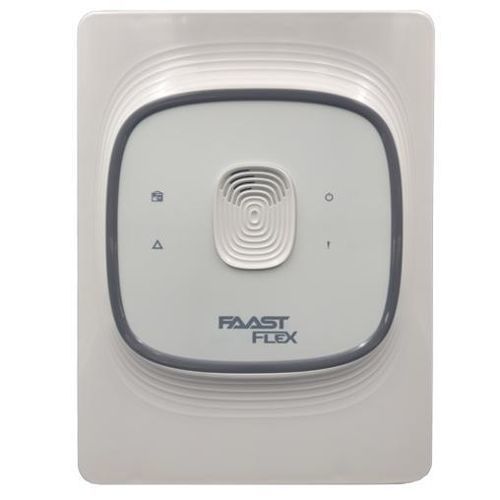

Suction type smoke detector FAAST FLEX™

wirelessindoorsingle-channel

Short description
(Available in Europe only) NEW

Overview
Addressable FAAST FLEX™ is an addressable aspirating smoke detector engineered for small and medium commercial and industrial spaces. It uses multi‑hole air sampling, remote detection and centralized maintenance to provide very early warning fire detection while enabling integration with existing alarm systems. Each detector communicates individually with the Fire Alarm Control Panel (FACP) and supports both Addressable Protocol (AP) loop and Classic Loop Interface Protocol (CLIP) for broad OEM compatibility.

Features

• Single & dual channel variants with area coverage up to 1,600 m² (single) and up to 2,000 m² (dual)
• Double‑knock capability (dual channel) for coincident detection
• Three configuration modes:
  • One out‑of‑the‑box mode with built‑in, user‑friendly controls for fast commissioning
  • Two extended modes configurable via the FACP or the SmartConfig mobile App
• Alarm, General Purpose Output (GPO) and Fault relays per channel for FACP and BMS integration
• Modular design with in‑field replaceable chamber, filter and aspirator for simplified service
• Bluetooth interface with mobile App for extended configuration and rapid diagnostics
• Operates in cold storage environments down to -40 °C (-40 °F)
• Ingress protection IP40
• Backward compatible with many OEM panels

Applications

• Small to medium warehouses
• Cold storage and refrigerated facilities
• Elevator shafts
• Ceiling voids and underfloor voids
• Transformer and electrical rooms
• Low‑noise environments

Certifications

• VdS
• EN 54‑20, ISO 7240:20
• EN 54‑17:2005
• CE

Resources (document titles available)
Addressable FAAST FLEX Product Bulletin
Addressable FAAST FLEX Data Sheet (available languages: English, French, German, Italian, Spanish, Danish, Polish)
Addressable FAAST FLEX Product Guide (multiple languages)
Addressable FAAST FLEX Engineering Specifications
FAAST FLEX Product Brochure
VdS Certificate for Addressable FAAST FLEX
CPR Certificate for Addressable FAAST FLEX

Technical specifications

• Product family: FAAST FLEX™ addressable aspirating smoke detector
• Channel options: single‑channel and dual‑channel variants
• Coverage area: up to 1,600 m² (single), up to 2,000 m² (dual)
• Detection principle: aspirating smoke detection with multi‑hole sampling
• Double‑knock: available on dual channel for coincident detection
• Configuration modes: one out‑of‑the‑box mode plus two extended modes (via FACP or SmartConfig App)
• Integration: individual detector communication with FACP; supports Addressable Protocol (AP) loop and Classic Loop Interface Protocol (CLIP)
• Outputs: Alarm, GPO and Fault relays per channel for FACP/BMS integration
• Serviceability: modular design with in‑field replaceable chamber, filter and aspirator
• Connectivity: Bluetooth interface and mobile App for configuration and diagnostics
• Operating temperature: suitable down to -40 °C (-40 °F) for cold storage
• Ingress protection: IP40
• Compatibility: backward compatible with OEM panels
• Related product identifiers referenced in images: FLX-010-EI, FLX-020-EI
