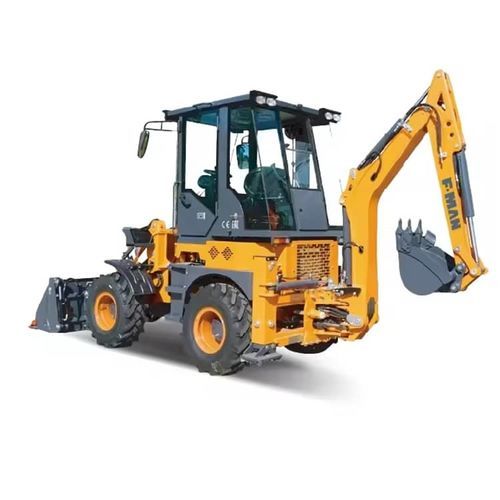

Compact backhoe loader FM415

compactdieselhandling

Product overview
FMAN FM415 backhoe loader — operating weight 3,500 kg; rated load 1,200 kg. Fitted with a 0.8 m³ front bucket and a 0.2 m³ backhoe bucket. Maximum digging depth 2,630 mm; front dumping height 2,650 mm. Powered by XINCHAI490 engine rated 37 kW at 2,200 r/min. Compact dimensions (5600 × 1680 × 2730 mm) for confined-site operation and transport. Optional telescopic outriggers (A/H type) increase stability during excavation.

Applications and key points

• Primary functions: digging, loading and material handling on construction and municipal sites
• Compact footprint enables work and transport in constrained areas
• Optional A/H telescopic outriggers for improved on-site stability during backhoe operations
• Supports attachments such as log grapple and hydraulic hammer for specialized tasks
• Hydraulic transmission with 2 F / 2 R gear positions; travel speed up to 18 km/h (F2 / R2)

Technical specifications

• Model: FM415
• Rated load: 1,200 kg
• Operating weight: 3,500 kg
• Front bucket capacity (standard): 0.8 m³
• Backhoe bucket capacity: 0.2 m³
• Max. digging depth: 2,630 mm
• Max. digging radius: 3,870 mm
• Max. digging height: 3,688 mm
• Front dumping height: 2,650 mm — Backhoe max dumping height: 2,840 mm
• Max. lifting capacity at max radius: 470 kg
• Engine model: XINCHAI490 — Rated power: 37 kW / 2,200 r/min
• Transmission model: 265 — Mode: Hydraulic — Gear positions: 2 F / 2 R
• Tyres: 31*15.5-15 — Axle: Beijing130
• Service brake: HYDRAULIC — Parking brake: MECHANICAL
• Dimensions (L×W×H): 5600 × 1680 × 2730 mm — Wheelbase: 1620 mm — Min. ground clearance: 230 mm
• Bucket outside width: 3000 mm

Additional product information

• Standard front bucket: 0.8 m³
• Optional telescopic outriggers (A/H type) available
• Compatible with log grapples, hydraulic hammers and other attachments
• Compact overall dimensions facilitate operation and transport in confined spaces
