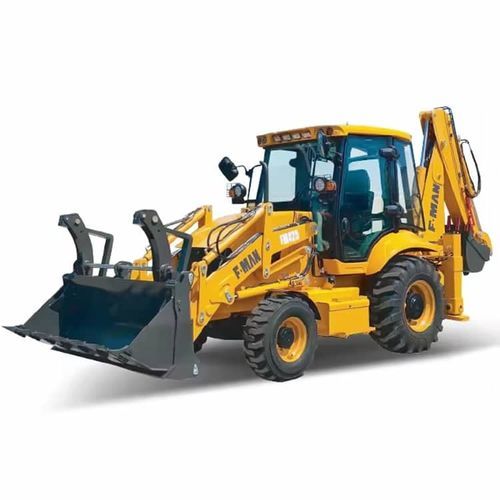

Compact backhoe loader FM425compactstandarddiesel
Add to favorites
Compare this product
Characteristics
- Type
- compact
- Size
- compact, standard
- Engine type
- diesel
- Other characteristics
- manoeuvrable
- Operating weight
9,000 kg
(19,841.6 lb)- Motor power
73 kW
(99.25 hp)
Description
Overview
The FM425 backhoe loader is built for high-mobility construction tasks such as municipal works, road building and urban infrastructure maintenance. It features a compact layout, WEICHAI 4105 Turbo engine (73 kW) and standard A/H outriggers. The machine supports multiple optional attachments to adapt to varied site requirements.
Key features
Technical specifications
Applications
Options and accessories
The FM425 backhoe loader is built for high-mobility construction tasks such as municipal works, road building and urban infrastructure maintenance. It features a compact layout, WEICHAI 4105 Turbo engine (73 kW) and standard A/H outriggers. The machine supports multiple optional attachments to adapt to varied site requirements.
Key features
- Operating weight: 9,000 kg
- Rated load: 2,530 kg
- Front bucket capacity: 1.1 m³; backhoe bucket: 0.3 / 0.3 m³
- Engine: WEICHAI 4105 Turbo, 73 kW @ 2,200 r/min
- Transmission: YJ280, hydraulic mode, 4 F / 4 R
- Standard A/H outriggers and compact design for stability and manoeuvrability
Technical specifications
- MODEL: FM425
- Rated Load (kg): 2530
- Bucket Capacity (m³): 1.1
- Operating Weight (kg): 9000
- Dumping Height (mm): 3120
- Dumping Distance (mm): 1185
- Transmission model: YJ280
- Transmission mode: Hydraulic
- Gear positions: 4 F / 4 R
- Travel speeds (km/h): F1 5.8; F2 10; F3 22; F4 40; R1 5.8; R2 10; R3 22; R4 40
- Maximum steering angle: ±45°
- Dimensions (L×W×H mm): 6400 × 2406 × 2980
- Bucket width (mm): 2406
- Wheelbase (mm): 2225
- Track width (mm): 1805
- Minimum ground clearance (mm): 310
- Engine model: 4105 Turbo (WEICHAI)
- Rated power: 73 kW @ 2200 r/min
- Axles: Front WZZD75D; Rear ZL30
- Tyres: Front 14-17.5; Rear 19.5L-24
- Service brake: Air Over Oil caliper brake
- Parking brake: Hand operated disc brake
- Outside of bucket (mm): 6600
- Backhoe bucket capacity (m³): 0.3 / 0.3
- Max. digging depth (mm): 3510 / 4320
- Max. digging radius (mm): 5565 / 6480
- Max. dumping height (backhoe) (mm): 3725 / 4460
- Max. digging height (mm): 5370 / 6050
- Max. digging radius lifting capacity (kg): 1220 / 1220
Applications
- Municipal construction and maintenance
- Road construction and roadside works
- Urban infrastructure installation and repair
Options and accessories
- Various front bucket sizes and tooth options
- Hydraulic breakers and augers
- Quick coupler systems for fast tool change
- Auxiliary hydraulic circuits and cabin variants
