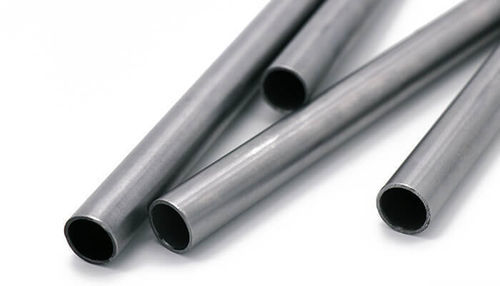

Carbon steel pipe SAE J524

DINASTM standardEuropean standard

Product Description
Product Name: SAE J524 Bright Precision Carbon Steel Pipe
Standard: EN10305-4 (DIN2445/2), EN10305-1 (DIN2391), ASTM A179
Steel grade: E235 (ST35 ST37.4), E355 (ST52 ST52.4)
Size: OD: 4-120mm
WT: 0.5-10mm
Length: Fixed 6m or as your request
Surface treatment: bright – anti-corrosion treatment after NBK
Delivery condition: +N (NBK) normalized under a controlled atmosphere
Delivery time: 15-45 days, according to the quantity and stock status
Special pipe material: API pipe, thick-walled pipe
Outer diameter range: 10 – 1000 mm
Thickness range: 1.4 – 14 mm
Length options: 12M, 6m, 6.4M, 3-12m
Certificates: API, CE, SASO, SABS, KS, JIS, GS, ISO9001
Grade: Carbon Steel
Tolerance: ±1%
Processing services available: welding, punching, cutting, bending, uncoiling
Oiled or unoiled: Lightly oiled

Product Advantages

• No oxide layer – No oxide layer on both sides of tube
• Surface – High precision, smooth surface
• No crack – No crack during flaring and flattening
• Anti-rust – Anti-rust on inside and outside
• Cold bending – Cold bending without deformation

Product Video / Quality & Processing
Cold drawn / cold rolled: High dimensional accuracy, excellent internal and external wall finish
Eddy current testing: Each steel pipe is tested by eddy current flaw detection to ensure product quality
Anaerobic bright heat treatment (NBK): During annealing vacuum protection and ammonia-decomposed nitrogen and hydrogen are injected for protected heating, heat preservation and cooling to maintain rolling accuracy, smoothness, mechanical properties and metallographic structure
Cleaning: High-pressure and ultrasonic cleaning for inner and outer walls; inner and outer walls coated with anti-rust oil and both ends sealed to prevent dust

Dimension
OD 6: 6*1; 6*1.5; 6*2
OD 8: 8*1; 8*1.5; 8*2
OD 10: 10*1; 10*1.5; 10*2
OD 12: 12*1; 12*1.5; 12*2; 12*2.5
OD 14: 14*1; 14*1.5; 14*2; 14*2.5; 14*3
OD 15: 15*1; 15*1.5; 15*2; 15*2.5; 15*3
OD 16: 16*1; 16*1.5; 16*2; 16*2.5; 16*3
OD 18: 18*1.5; 18*2; 18*2.5; 18*3; 18*3.5; 18*4
OD 20: 20*1.5; 20*2; 20*2.5; 20*3; 20*3.5; 20*4
OD 22: 22*1.5; 22*2; 22*2.5; 22*3; 22*3.5; 22*4
OD 25: 25*2; 25*2.5; 25*3; 25*3.5; 25*4
OD 28: 28*2; 28*2.5; 28*3; 28*3.5; 28*4
OD 30: 30*2; 30*2.5; 30*3; 30*3.5; 30*4; 30*4.5; 30*5
OD 32: 32*2; 32*2.5; 32*3; 32*3.5; 32*4; 32*4.5; 32*5
OD 34: 34*2; 34*2.5; 34*3; 34*3.5; 34*4; 34*4.5; 34*5; 34*6
OD 35: 35*2; 35*2.5; 35*3; 35*3.5; 35*4; 35*4.5; 35*5; 35*6
OD 38: 38*2; 38*2.5; 38*3; 38*3.5; 38*4; 38*4.5; 38*5; 38*6
OD 40: 40*2.5; 40*3; 40*3.5; 40*4; 40*4.5; 40*5; 40*6
OD 42: 42*2.5; 42*3; 42*3.5; 42*4; 42*4.5; 42*5; 42*6
OD 45: 45*2.5; 45*3; 45*3.5; 45*4; 45*4.5; 45*5; 45*6
OD 46: 46*2.5; 46*3; 46*3.5; 46*4; 46*4.5; 46*5; 46*6
OD 48: 48*2.5; 48*3; 48*3.5; 48*4; 48*4.5; 48*5; 48*6
OD 50: 50*2.5; 50*3; 50*3.5; 50*4; 50*4.5; 50*5; 50*6
OD 54: 54*3; 54*3.5; 54*4; 54*4.5; 54*5; 54*6
OD 60: 60*3; 60*3.5; 60*4; 60*4.5; 60*5; 60*6; 60*8

Chemical Composition
E215 (1.0212): C max 0.10; Si max 0.05; Mn max 0.7; P max 0.025; S max 0.015; Total min 0.025
E235 (1.0308): C max 0.17; Si max 0.35; Mn max 1.2; P max 0.025; S max 0.015
E355 (1.0580): C max 0.22; Si max 0.55; Mn max 1.6; P max 0.025; S max 0.015

Tolerance
Outer Diameter 4mm-20mm: Allowable tolerance GB/T3639 ±0.10mm; DIN2391 OD ±0.08mm; Special tolerance OD ±0.05mm; WT ±0.05mm
20mm-30mm: Allowable tolerance GB/T3639 ±0.10mm; DIN2391 ±0.08mm; Special tolerance OD ±0.08mm; WT ±0.08mm
31mm-40mm: Allowable tolerance GB/T3639 ±0.15mm; DIN2391 ±0.15mm; Special tolerance OD ±0.10mm; WT ±0.08mm
41mm-60mm: Allowable tolerance GB/T3639 ±0.20mm; DIN2391 ±0.20mm; Special tolerance OD ±0.15mm; WT ±0.15mm
61mm-80mm: Allowable tolerance GB/T3639 ±0.30mm; DIN2391 ±0.30mm; Special tolerance OD ±0.20mm; WT ±0.20mm
81mm-120mm: Allowable tolerance GB/T3639 ±0.45mm; DIN2391 ±0.45mm; Special tolerance OD ±0.30mm; WT ±0.30mm

Mechanical Properties
E215 (1.0212): Yield strength (min) 215 MPa; Tensile strength 290–430 MPa; Elongation A ≥30%
E235 (1.0308): Yield strength (min) 235 MPa; Tensile strength 340–480 MPa; Elongation A ≥25%
E355 (1.0580): Yield strength (min) 355 MPa; Tensile strength 490–630 MPa; Elongation A ≥22%

Caractéristiques / Spécifications techniques

• Standard compliance: EN10305-4, EN10305-1, ASTM A179
• Steel grades available: E215, E235, E355
• OD range: 4–120 mm (standard listing) and up to 1000 mm for special pipes
• Wall thickness (WT) range: 0.5–10 mm (standard); thicknesses up to 14 mm noted for some products
• Length options: fixed 6m or customized (3–12m; 6.4m; 12m)
• Surface: bright with NBK anaerobic bright heat treatment and anti-corrosion oiling
• Testing: eddy current flaw detection on each pipe
• Available services: welding, punching, cutting, bending, uncoiling
• Certificates: API, CE, SASO, SABS, KS, JIS, GS, ISO9001
