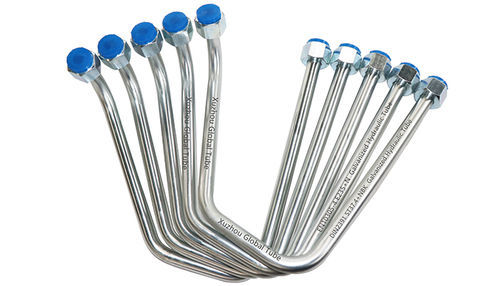

Pneumatic tube assembly Tube Assembly –Cutting Sleeve Type

for hydrocarbonshydraulicindustrial

Feature
Tube assembly consisting of a steel tube, cutting sleeve and nut; designed to connect hydraulic components and convey hydraulic oil and gas in industrial systems.

Specification

• Cutting sleeve and nuts: JS brand (imported from Germany)
• Maximum bending capacity: Ф60×5
• High internal cleanliness suitable for hydraulic circuits
• Surface treatment options: galvanized, phosphated
• Designed for high pressure resistance and leak-free connections; easy assembly for efficient installation

Application
Suitable for construction machinery, hydraulic systems, special vehicles, heavy trucks, agricultural machinery and hydraulic/pneumatic equipment.

Technical specifications

• Composition: steel tube + cutting sleeve + nut
• Cutting sleeve and nut brand: JS (imported from Germany)
• Maximum bending capacity: Ф60×5
• Internal cleanliness: high
• Surface treatments: galvanization; phosphating
• Performance: high pressure resistance, leak-free connections, easy assembly
• Typical applications: construction machinery, hydraulic systems, special vehicles, hydraulic & pneumatic machinery
