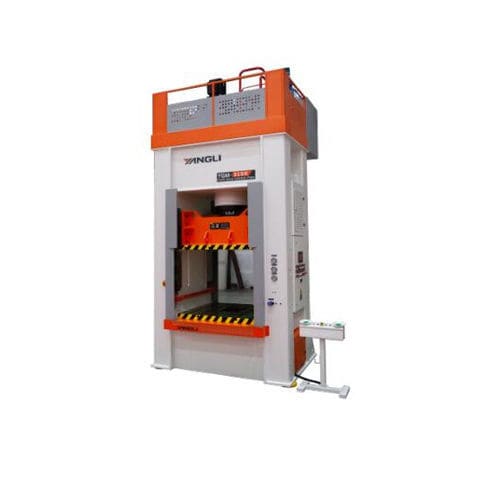

Servo-hydraulic press YGMK compressionframe
Add to favorites
Compare this product
Characteristics
- Operation
- servo-hydraulic
- Function
- compression
- Structure
- frame
- Force
2,000 kN, 3,150 kN, 4,000 kN, 5,000 kN, 6,300 kN
- Opening
850 mm, 1,000 mm, 1,150 mm
(33 in, 39 in, 45 in)- Stroke
500 mm, 600 mm, 700 mm
(19.685 in, 23.622 in, 27.559 in)- Max. pressure
25 MPa, 26 MPa
- Hydraulic pump power
22 kW, 45 kW
Description
◆ Servo control is adopted
a.20%~50% energy is saved;
b.Noise is lower than 75db;
c.Temperature is raised lower than 22℃.
◆ Pump station and electrical enclosure are mounted onto the frame, the entire frame structure is easy for disassemble, transportation and installation.
◆ Four-corner eight-face guide with high guide accuracy and offset load resistance centralized lubrication is adopted.
◆ Integrated with plug-in valve of hydraulic system with reliable performance, long service life and less hydraulic impact.
◆ Oil cylinder body and piston rod with patent technology to improve the performance reliability.
◆ Slide operating pressure, speed, stroke can be adjusted as per processing demand.
