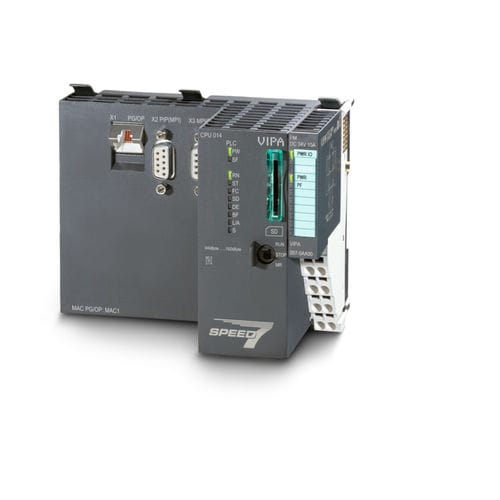

Compact CPU module SLIO

SLIO system

By means of the modular and extremely compact SLIO the realization of almost every automated solution will from now on be simpler and especially more economical. It´s one of the most effective and modern decentralized I/O systems available on the market. It combines high functionality with a clever mechanic concept in an extremely compact design. Features Compact and Space-Saving Design Conceptual separation of electronic and installation layer Space-saving, thin design Innovative staircase-shaped wiring layer Simple "Two components set-up" Clever Labeling and Diagnostic Concept Clear allocation and readability of channel states Simple, time-saving installation and maintenance by means of the connector pin assignment provided on the module Clear, definite labeling of channels Reference designator label remains on the exchange of a module Installation and Maintainability "Permanent Wiring" enables the exchanging without the disconnection of the wiring Intelligent slide and plug mechanism for a simple handling Electronic is protected against reverse polarity Encoding of the electronic modules prevents from incorrect plugging High performance Quick backplane bus concept of 48MBit/s With ETS modules it is possible to switch exactly up to +-1us independent of fieldbus
