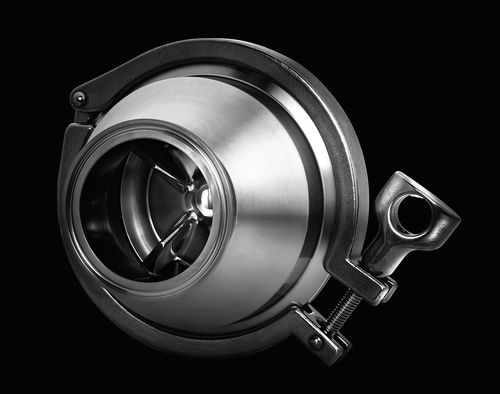

Hygienic check valve YEVspringlessfor waterfor food
Add to favorites
Compare this product
Characteristics
- Type
- springless
- Fluid
- for water, for food
- Applications
- fluid, for the food industry
- Valve plug seal material
- EPDM, Viton®, NBR, FKM
- Other characteristics
- hygienic
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -20 °C
(-4 °F)
Description
The simplest check valve for food & beverage plants.
Maximum hygiene maintenance-free. Tightness guaranteed in all installation positions, even vertical with downward flow.
YEV is the simplest and most economical model in the entire Ygros range, but it does not lose its hygienic and reliable characteristics.
BENEFITS AT A GLANCE
Energy saving: its operating principle and innovative design allow for a smooth and free passage, thus minimising turbulence and pressure losses
Maximum hygiene: only the shutter comes into contact with the product. No stagnation points, no springs or other intermediate components which could contaminate it.
Safe closing: ensured by patented magnetic principle
Any installation position possible: it can be installed in horizontal, vertical up and down positions.
Laminar flow: No turbulences
Maintenance free
Longer valve life: thanks to high chemical resistance of the materials
