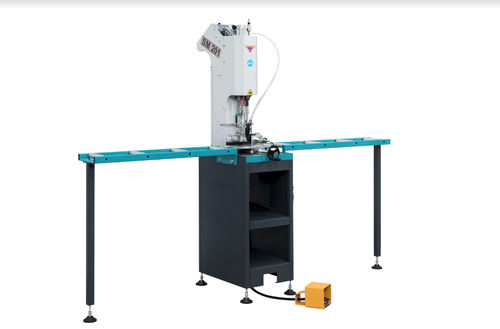

Foot-operated screwing unit SM 201

manual feedprofileautomatic feed

Product Info
Used for screwing reinforcement steel onto PVC door and window profiles quickly and precisely. The PVC profile with inserted reinforcement steel is placed manually on the screwing unit table. The screwing cycle is started with the foot pedal; profile advance is done manually until the screw is fully driven.

General Features

• Automatic screw feeding unit
• Foot-pedal operation to start screwing
• Adjustable screwing force and depth for different profile types and models
• Durable design with easy bit change
• Automatic stop after completing each screwing operation
• Safety key to prevent misuse
• Dedicated adjustment key for screw height
• Automatic clamps securely fix the material to prevent movement during screwing
• Adjustable resting/support distance for different profile types
• Profile support arms on left and right sides
• Mechanical sensor on the head ensures consistent screwing process
• Screw feed speed: approx. 1.7 sec. per piece
• Recommended max. reinforcement sheet thickness: 3.0 mm

Standard Accessories

• Profile support arms (left and right)

Optional Accessories

• Not specified

Technical Specifications

• Model: SM 201
• Application: Screwing reinforcement steel to PVC door and window profiles
• Operation: Manual loading; screw cycle started by foot pedal; manual profile advance
• Screw feeding: Automatic
• Adjustability: Force, depth/point and screw height adjustable
• Clamping: Automatic clamps to secure material
• Sensor: Mechanical head sensor for process control
• Screw feed rate: Approx. 1.7 sec per screw
• Recommended reinforcement sheet thickness: max. 3.0 mm
