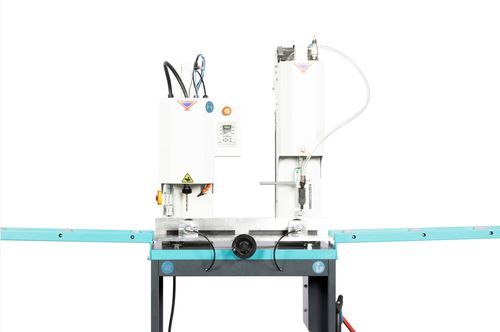

PVC profile drilling and insertion machine SM 201 SD

Product overview
Used to screw reinforcement steel and drill mounting holes on PVC door and window profiles. The PVC profile with inserted reinforcement is placed manually on the machine table; screwing and drilling cycles are started by foot pedal. Profile forward movement is performed manually until operations are completed.

Key features

• Screws reinforcement steel and drills mounting holes on PVC profiles
• Foot-pedal control for screwing and drilling processes
• Automatic screw feeding unit
• Adjustable screwing force and depth for various profile types and models
• Easy bit/tool change for long-term operation
• Automatic stop after finishing screwing
• Safety key to prevent unauthorized use
• Dedicated adjustment key for screw height
• Automatic clamps fix material during screwing to prevent movement
• Adjustable support/resting distance for supported profile types
• Profile support arms on left and right sides
• Mechanical sensor on the head ensures optimal screwing process
• Screw feed speed: approx. 1.7 s per piece
• Recommended reinforcement sheet thickness: max. 3.0 mm

Standard accessories

• Profile support arms (left and right)

Technical specifications

• Height range (Hmin - Hmax): 40 mm - 160 mm
• Width range (Wmin - Wmax): 40 mm - 165 mm
• Weight: 132 Kg / 100 Kg
• Screw feed speed: approx. 1.7 s/piece
• Recommended reinforcement sheet thickness: max. 3.0 mm

Operation & safety

• Manual loading and manual profile advance; cycles triggered by foot pedal
• Automatic clamps and safety key for secure operation
• Regular inspection and correct bit selection recommended for consistent results
