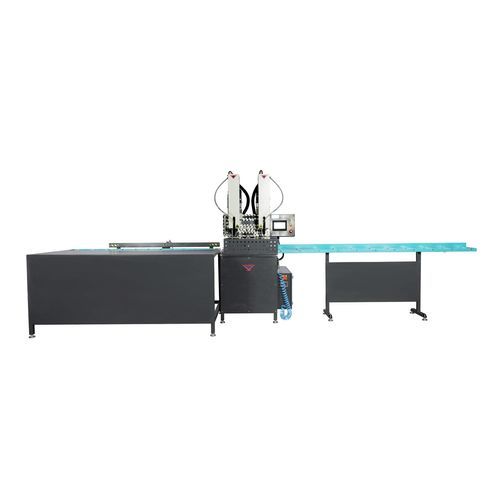

Automatic screwing unit SM 206

fully-automaticfor screw assemblyprofile

Product Info
This machine fastens reinforcement steel sheets to PVC door and window profiles with precision and high throughput. PVC profiles are loaded manually into the screwing unit. Double‑head units perform simultaneous screwdriving according to dimensions set on the operator panel. After screwing, profiles are automatically advanced to the outfeed stand and arranged sequentially.

General Features

• Pneumatic and automatic screw feeding
• Automatic stop when the screwing cycle completes
• Selection of screw spacing from the operator screen
• Automatic screw distance measurement with sensor
• Support for four profile widths
• Simultaneous dual‑head screwing
• Protective sensors to prevent misuse
• Height adjustment sensor for special screws
• Automatic profile clamping during screwing
• Pneumatic range stop to support the profile
• Automatic screw discharge
• Durable design and easy bit change
• Manual screw feeding option from the screen
• Exit conveyor for automatic product discharge after processing
• Average screwing speed: 1.7 sec / pc
• Recommended reinforcement sheet thickness: 3.0 mm
• Capable of double‑line screwing
• Mechanical structure suitable for thin profiles

Standard Accessories

• In‑feed table on the right and out‑feed table on the left

Technical Specifications Table
150x522x190
475 Kg / 415 Kg

Characteristics / Technical Specifications

• Model: SM 206
• Function: Fully automatic double‑head screwing of reinforcement steel sheets to PVC door and window profiles
• Feeding: PVC profiles fed manually into the screwing unit
• Screwing heads: Double head — simultaneous dual‑head screwing
• Screw feeding: Pneumatic and automatic; manual feeding option from the screen
• Screw spacing: Selectable on operator panel; automatic measurement with sensor
• Profile widths: Supports four different profile widths
• Protection: Protective sensors; height adjustment sensor for special screws; automatic clamping during screwing
• Support: Pneumatic range stop for supporting profile
• Screw handling: Automatic screw discharge
• Maintenance: Durable design and easy bit replacement
• Outfeed: Exit conveyor for automatic discharge after process
• Performance: Average screwing speed 1.7 sec per piece
• Recommended sheet thickness: 3.0 mm
• Capability: Double‑line screwing; designed for thin profile screwing
• Dimensions (technical block): 150x522x190
• Weight (technical block): 475 Kg / 415 Kg
