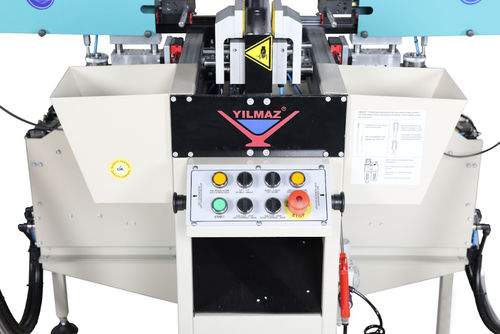

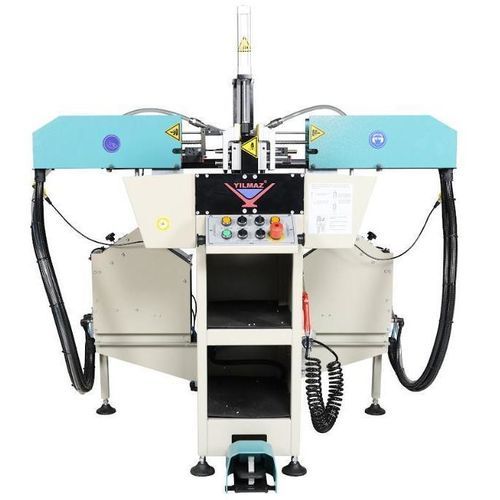

Foot-operated screwing and assembly system MCA 801

automaticpedal-operatedprofile

Product overview
Positions and screws metal wedge connectors used in PVC mullion (post) profiles of various series and sizes, performing simultaneous screwing on both surfaces without manual adjustment. Designed for inline assembly processes where repeatable positioning and controlled screw insertion are required.

General features

• 2 × automatic screw feeding units for simultaneous dual-surface screwing
• Foot-pedal operation for cycle start and safety control
• Adjustable screwing force and depth to match profile types and connector models
• Tooling designed for easy bit replacement and maintenance
• Automatic stop at end of screwing cycle
• Safety key to prevent unauthorized use
• Special adjustment key for setting screw height
• Adjustable mechanical turret accommodating up to 4 wedge connector types
• Automatic profile clamping and centering during screwing
• Mechanical sensor on the head to ensure consistent screw insertion
• Screw feed time approx. 1.7 sec per piece
• Recommended reinforcement sheet thickness max. 2.5 mm

Standard accessories

• 1× semi-finished connector mold
• 2 × apex screw bits
• Hexagon-head bolts in various sizes for mechanical turret

Optional accessories

• Special mold made to customer connector specifications

Technical specifications

• Model: MCA 801
• Application: positions and screws metal wedge connectors in PVC mullion/post profiles of different series and sizes
• Screw feed system: 2 automatic screw feeding units
• Operation: foot-pedal activation; automatic cycle stop after screwing
• Adjustability: screwing force, screwing point and screw height adjustable
• Tooling: mechanical turret adjustable for 4 connector types; quick bit change
• Clamping & centering: automatic profile clamping and centering during operation
• Control & safety: mechanical head sensor; safety key to prevent misuse
• Performance: screw feed speed approx. 1.7 sec per piece
• Material limit: recommended reinforcement sheet thickness max. 2.5 mm
• Included accessories: semi-finished connector mold, apex screw bits, hexagon-head bolts for turret
• Optional: customer-specific special mold available

Product video
Product video available (title: "MCA 801 video").
