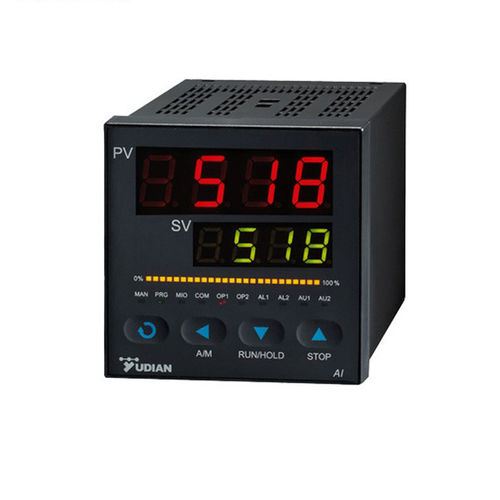

4-digit PID controller AI-518

2-linedual-linepanel-mount

PID temperature controller is a control loop feedback mechanism widely used in industrial control systems and a variety of other applications requiring continuously modulated control. - Economical,wide application,precise control - High accuracy:0.25% FS ±0.1°C - APID, AMPT, PID, ON-OFF selectable with auto-tuning - Dual 4-digit display of process & set point - LED bar graph selectable for display - Input Types:Thermocouple,RTDs, Linear currect/voltage - Output type: Relay, SSR Drive, Triac, linear current - Wide variety of alarm modes selectable - heat/cool dual output supported - RS485/232 communication supported with protocol AIBUS/MODBUS - Fit worldwide power supplies:110~240VAC, 24VDC, 50/60HZ, - Elctromagnetic compatibility: ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5. -Power consumption: ≤5W -Operating Ambient: Temperature 0~60℃; Humidity ≤ 90%RH -Front Panel Dimension: 96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm - CE,UL,RoHS,ISO9001 approved/certificated - 1 years' warranty
