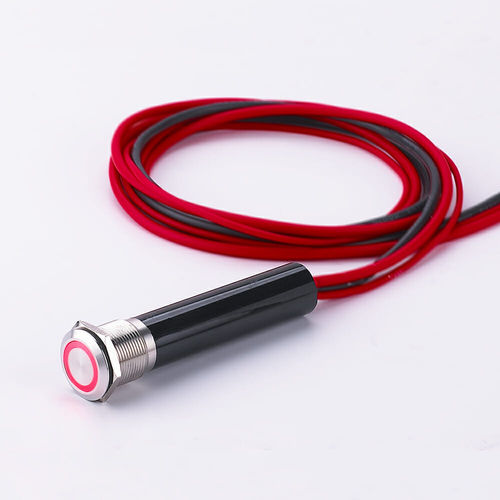

Vandal-proof switch L19Ytouchsingle-polerobust
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Number of poles
- single-pole
- Protection level
- vandal-proof, robust, IP67
- Mounting
- built-in
- Other characteristics
- mechanical, latching, momentary
- Primary current
21 A
- Voltage
Max.: 24 V
Min.: 12 V
- Diameter / length
19 mm
(0.7 in)- Operating temperature
Max.: 55 °C
(131 °F)Min.: -20 °C
(-4 °F)
Description
L19Y high current anti vandal switch is perfect for marine and automation use. Langir offers attractive, robust and durable switch, available with different actuator shapes, available with LED illumination and engraving, protection IP67 / IK09.
L19Y High current anti vandal switch
• 19mm diameter panel cutout
• Variety LED option
• Dot, ring or symbol illumination available
• Multiple actuator options
• Pilot indicator option
• IP67 rated
Specifications
• Mechanical Life: 1,000,000 Cycles
• Electrical Life: 50,000 Cycles
• Contact Resistance: 50mΩ Max.
• Insulation Resistance: 1000 MΩ Min.
• Dielectric Strength: 2,000VAC
• Travel: 1.50mm
• Actuation Force: 4N
• Panel Thickness: 1-11mm
• Mounting Nut Torque: 5-14Nm
