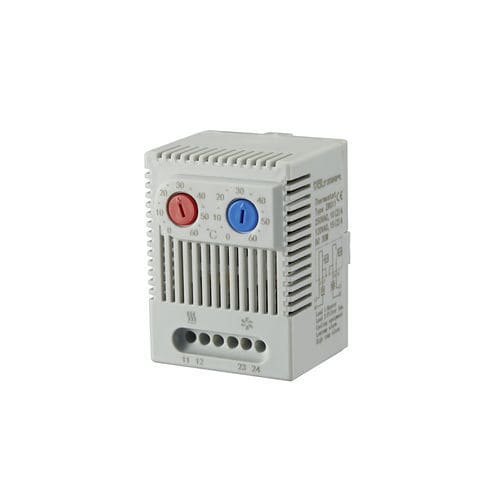

Adjustable thermostat Y0117 series
NONCDIN rail

Adjustable thermostat - Y0117 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - NO / NC / DIN rail

Add to favorites

Compare this product

Go to the YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. website for more information

Characteristics

Type

adjustable

Contact type

NO, NC

Mounting

DIN rail

Applications

for heating and cooling, for electrical cabinet

Temperature

Min.: -10 °C
(14 °F)

Max.: 150 °C
(302 °F)

Description

Two thermostats in one casing: Thermostat (contact breaker, normally closed) for regulating heaters. Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded. Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts. Dimensions: 67x50x46mm Weight: 90g approx. Mounting on 35mm DIN rails - Product code: Y011720-00, Setting range: contact breaker, normally closed 0 to +60℃, contact maker, normally open 0 to +60℃ - Product code: Y011720-01, Setting range: contact breaker, normally closed +32 to +140℉, contact maker, normally open +32 to +140℉ - Product code: Y011750-00, Setting range: contact breaker, normally closed -10 to +50℃, contact maker, normally open +20 to 80℃ - Product code: Y011750-01, Setting range: contact breaker, normally closed +14 to +122℉, contact maker, normally open +68 to +176℉ - Product code: Y011760-00, Setting range: contact maker, normally open 0 to +60℃, contact maker, normally open 0 to +60℃ - Product code: Y011760-01, Setting range: contact maker, normally open +32 to +140℉, contact maker, normally open +32 to +140℉
