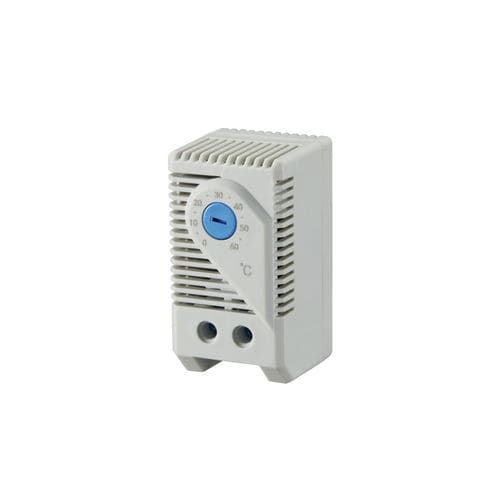

Adjustable thermostat NO 011 seriesNODIN railfor electrical cabinet
Add to favorites
Compare this product
Characteristics
- Type
- adjustable
- Contact type
- NO
- Mounting
- DIN rail
- Applications
- for electrical cabinet
- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)
Description
Fan thermostat: Thermostat (normally open), contact maker for regulating filter fans and heat exchangers or for switching signal devices when the temperature limit has been exceeded. Mounting on 35mm DIN rails. Dimensions: 60x33x43mm. Weight: 40g approx. Approvals: CE, UL.
- Product code (NO-Fan thermostat)
- NO 011410: 0 to +60℃
- NO 011430: -10 to +50℃
- NO 011580: +20 to 80℃
- NO 011419: +32 to +140℉
- NO 011439: +14 to +122℉
- NO 011479: 0 to +60℃
- Mounting: 35mm DIN rails
- Dimensions: 60x33x43mm
- Weight: 40g approx.
- Approvals: CE, UL
