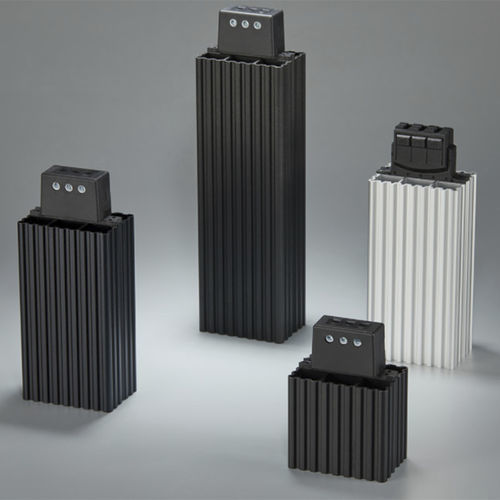

PTC resistance heater Y140 series
for electrical cabinetindustrial

PTC resistance heater - Y140 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - for electrical cabinet / industrial

Add to favorites

Compare this product

Go to the YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. website for more information

Characteristics

Type

PTC

Applications

for electrical cabinet, industrial

Power

Min.: 15 W
(0.02 hp)

Max.: 150 W
(0.2 hp)

Description

Cabinet heater Heating element: PTC resistor,sell regulating and temperature liminting Heating body: extruded aluminium profile,anodised Body temperature: 75℃ max.(400W) Connection: 0.5-1.5mm² with screw terminal IP rating: IP54 Mounting on 35mm DIN rails with clips Proudct code Operating voltage Heating capacity Max.current Length(L) Weight Y140015 110-250VAC or DC 15W 1.5A 65mm 0.3kgs Y140030 110-250VAC or DC 30W 3.0A 65mm 0.3kgs Y140045 110-250VAC or DC 45W 3.5A 65mm 0.3kgs Y140060 110-250VAC or DC 60W 2.5A 140mm 0.4kgs Y140075 110-250VAC or DC 75W 4.0A 140mm 0.5kgs Y140100 110-250VAC or DC 100W 4.5A 140mm 0.5kgs Y140150 110-250VAC or DC 150W 9.0A 220mm 0.7kgs
