- YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD.

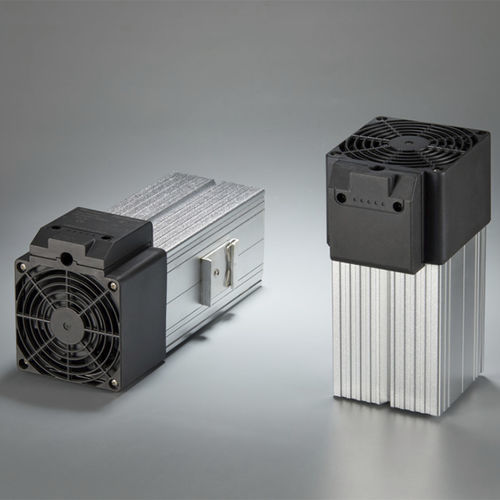

Industrial fan heater Y0464 series
Add to favorites
Compare this product
Characteristics
- Heating power
250 W, 400 W
(853.03 BTU/h, 1,364.86 BTU/h)
Description
Heating: resistance heater
Heating body: anodised extruded aluminium profile
Body temperature: 75℃ max.(400W)
Connection: 1 internal connection terminal 0.5mm² with strain relief, clamping torque 0.8NM max.
IP rating: IP20
Mounting on 35mm DIN rails with clips
Proudct code Operating voltage Heating capacity Length(L) Weight
Y046400 230VAC,50/60HZ 250W 182mm 1.1kgs
Y046410 230VAC,50/60HZ 400W 222mm 1.4kgs
Y046409 120VAC,50/60HZ 250W 182mm 1.1kgs
Y046419 120VAC,50/60HZ 400W 222mm 1.4kgs
Y046401 24VDC 250W 182mm 1.1kgs
Y046402 48VDC 250W 182mm 1.1kgs
Y046412 48VDC 400W 222mm 1.4kgs
- Heating: resistance heater
- Heating body: anodised extruded aluminium profile
- Body temperature: 75℃ max.(400W)
- Connection: 1 internal connection terminal 0.5mm² with strain relief, clamping torque 0.8NM max.
- IP rating: IP20
- Mounting on 35mm DIN rails with clips
