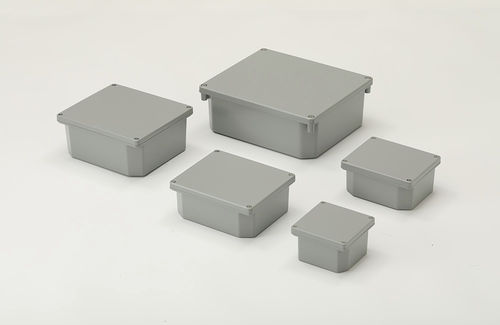

Distribution electrical enclosure AL-E serieswall-mountedaluminumindustrial
Add to favorites
Compare this product
Characteristics
- Function
- distribution
- Configuration
- wall-mounted
- Material
- aluminum
- Application
- industrial
- Width
Min.: 100 mm
(3.9 in)Max.: 340 mm
(13.4 in)- Height
Min.: 100 mm
(3.9 in)Max.: 235 mm
(9.3 in)- Depth
Min.: 60 mm
(2.36 in)Max.: 160 mm
(6.3 in)
Description
Aluminium box with wall hoops
Resistance:chemical agents,alkali,olis,salts,etc.
Rated voltage: up to 690V
Maximum current: up to 800A
Operating temperature: -40℃ to + 120℃
Glow wire capability/Flammability: 960 degree/ UL94V0
Material:Aluminium
Mounting plate: galvanised steel 1.2mm or insulated plate(separate supply)
IP degree: IP66
IK degree: IK 08
Color: RAL7038 grey
Dimensions(mm)
PRODUCT CODE W H D
AL-1010-E 100 100 60
AL-1311-E 138 113 64
AL-1614-E 165 140 65
AL-1816-E 188 166 80
AL-2521-E 253 216 94
AL-3423-E 340 235 120
AL-3423-1E 340 235 160
Diecast aluminum enclosure, High Quality, Made in China. IP66 Outdoor Enclosure. Pole Mount Enclosure. Flanged plastic boxes. NEMA 6P Enclsoure.
