- YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD.

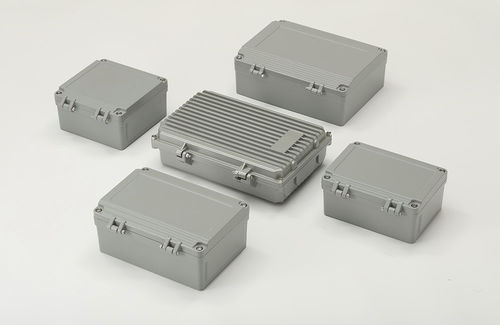

Aluminum electrical enclosure AL-H seriesdistributioncontrolwall-mounted
Add to favorites
Compare this product
Characteristics
- Function
- distribution, control
- Configuration
- wall-mounted, modular, floor-mounted
- Material
- polycarbonate, ABS, steel, galvanised steel, stainless steel, aluminum, sheet steel
- Protection level
- IP66, IP65, IK 08, IK 10, IP67, IP55, IP40, IP54, IP30, IP43
- Application
- power distribution, industrial
- Other characteristics
- pre-assembled, locking, double-door, single door, with hinged cover
- Width
Min.: 100 mm
(3.9 in)Max.: 340 mm
(13.4 in)- Height
Min.: 100 mm
(3.9 in)Max.: 235 mm
(9.3 in)- Depth
Min.: 60 mm
(2.36 in)Max.: 160 mm
(6.3 in)
Description
Aluminium box with hinges
Resistance:chemical agents,alkali,olis,salts,etc.
Rated voltage: up to 690V
Maximum current: up to 800A
Operating temperature: -40℃ to + 120℃
Glow wire capability/Flammability: 960 degree/ UL94V0
Material:Aluminium
Mounting plate: galvanised steel 1.2mm or insulated plate(separate supply)
IP degree: IP66
IK degree: IK 08
Color: RAL7038 grey
-product code H W D NOTE
AL-1006-H 100 68 50
AL-1109-H 115 90 58
AL-1616-H 160 160 85
AL-1813-H 185 135 85
AL-2215-H 220 155 95
AL-2519-H 250 190 95
AL-2519-H 250 190 68 Communication chassies
AL-2818-H 280 185 80 Communication chassies
AL-1109-E 115 90 58 With hinges,wall hoopes
AL-1814-E 180 140 60 With hinges,wall hoopes
Diecast aluminum enclosure, High Quality, Made in China. IP66 Outdoor Enclosure. Pole Mount Enclosure. Flanged plastic boxes. NEMA 6P Enclsoure.
