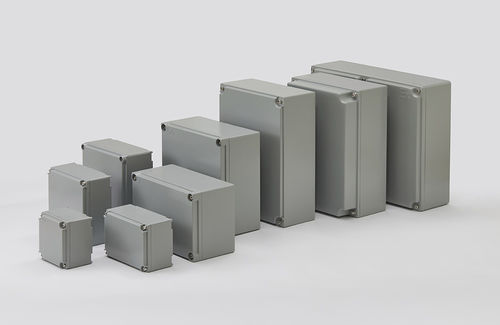

Wall-mount enclosure AL series

for DIN railrectangularhexagonal

Resistance: chemical agents, alkali, oils, salts, etc. Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Glow wire capability/Flammability: 960 degree/ UL94V0 Material: Aluminium Mounting plate: galvanised steel 1.2mm or insulated plate (separate supply) IP degree: IP66 IK degree: IK 08 Color: RAL7038 grey - Insulated plate - Galvanised mounting plate Produce code | H | W | D | Galvanised plate | Insulated plate --- | --- | --- | --- | --- | --- AL-1313-B | 135 | 135 | 95 | L1313 | A1313 AL-2013-B | 200 | 135 | 95 | L2013 | A2013 AL-2020-B | 200 | 200 | 95 | L2020 | A2020 AL-2323-B | 230 | 230 | 107 | L2323 | A2323 AL-3020-B | 300 | 200 | 150 | L3020 | A3020 AL-3030-B | 300 | 300 | 150 | L3030 | A3030 AL-4030-B | 400 | 300 | 140 | L4030 | A4030 AL-4030-B | 400 | 300 | 180 | L4030 | A4030 AL-5040-B | 500 | 400 | 150 | L5040 | A5040 Diecast aluminum enclosure, High Quality, Made in China. IP66 Outdoor Enclosure. Pole Mount Enclosure. Flanged plastic boxes. NEMA 6P Enclsoure. nema enclosure aluminum enclosures outdoor electronics enclosure electronics enclosure box aluminum electronics enclosure watertight aluminum box aluminum electronic enclosures aluminum electronics enclosure
