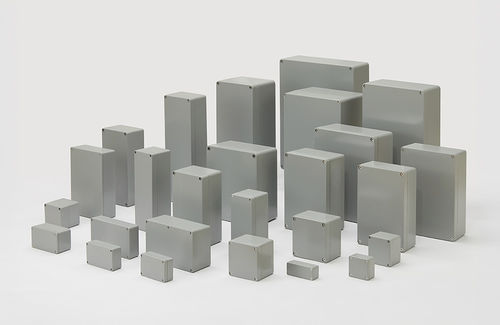

Wall-mount enclosure AL series

for DIN railrectangularhexagonal

aluminum enclosures Resistance: chemical agents, alkali, oils, salts, etc. Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to +120℃ Glow wire capability/Flammability: 960 degree/ UL94V0 Material: Aluminium Mounting plate: galvanised steel 1.2mm or insulated plate (separate supply) IP degree: IP66 IK degree: IK 08 Color: RAL7038 grey Product Code | H | W | D | Zinc Mounting Plate | Insulated Plate AL-0605 | 64 | 58 | 35 | L0605 | A0605 AL-0807 | 80 | 75 | 60 | L0807 | A0807 AL-0903 | 90 | 36 | 31 | L0903 | A0903 AL-0906 | 98 | 64 | 35 | L0906 | A0906 AL-1010 | 100 | 100 | 60 | L1010 | A1010 AL-1010-1 | 100 | 100 | 80 | L1010-1 | A1010-1 AL-1106 | 111 | 64 | 37 | L1106 | A1106 AL-1106-1 | 115 | 65 | 55 | L1106-1 | A1106-1 AL-1109 | 115 | 90 | 58 | L1109 | A1109 AL-1208 | 120 | 80 | 56 | L1208 | A1208 AL-1208-1 | 120 | 80 | 58 | L1208-1 | A1208-1 AL-1212 | 120 | 120 | 82 | L1212 | A1212 AL-1308 | 135 | 80 | 56 | L1308 | A1308 AL-1414 | 140 | 140 | 75 | L1414 | A1414 AL-1414-1 | 140 | 140 | 100 | L1414-1 | A1414-1 AL-1410 | 145 | 100 | 45 | L1410 | A1410 AL-1506 | 150 | 64 | 37 | L1506 | A1506 AL-1510 | 150 | 100 | 80 | L1510 | A1510 AL-1610 | 160 | 100 | 60 | L1610 | A1610 AL-1610-1 | 160 | 100 | 65 | L1610-1 | A1610-1 AL-1610-2 | 160 | 100 | 80 | L1610-2 | A1610-2 AL-1616 | 160 | 160 | 70 | L1616 | A1616 AL-1616-1 | 160 | 160 | 90 | L1616-1 | A1616-1 AL-1609 | 165 | 95 | 39 | L1609 | A1609 AL-1708 | 175 | 80 | 56 | L1708 | A1708 AL-1708-1 | 175 | 80 | 65 | L1708-1 | A1708-1 AL-1708-2 | 175 | 80 | 80 | L1708-2 | A1708-2 AL-1812 | 188 | 120 | 78 | L1812 | A1812 AL-2010 | 200 | 100 | 60 | L2010 | A2010 AL-2010-1 | 200 | 100 | 80 | L2010-1 | A2010-1 AL-2012 | 200 | 120 | 80 | L2012 | A2012 AL-2013 | 200 | 130 | 60 | L2013 | A2013 AL-2013-1 | 200 | 130 | 78 | L2013-1 | A2013-1 AL-2013-2 | 200 | 130 | 85 | L2013-2 | A2013-2 AL-2212 | 220 | 120 | 80 | L2212 | A2212 AL-2212-1 | 220 | 120 | 90 | L2212-1 | A2212-1 AL-2214 | 222 | 145 | 55 | L2214 | A2214 AL-2214-1 | 222 | 145 | 80 | L2214-1 | A2214-1 AL-2315 | 230 | 150 | 78 | L2315 | A2315 AL-2315-1 | 230 | 150 | 85 | L2315-1 | A2315-1 AL-2320 | 230 | 200 | 100 | L2320 | A2320 AL-2416 | 240 | 160 | 75 | L2416 | A2416 AL-2416-1 | 240 | 160 | 100 | L2416-1 | A2416-1 AL-2508 | 250 | 80 | 64 | L2508 | A2508 AL-2508-1 | 250 | 80 | 80 | L2508-1 | A2508-1 AL-2512 | 250 | 120 | 82 | L2512 | A2512 AL-2616 | 260 | 160 | 90 | L2616 | A2616 AL-2618 | 265 | 185 | 75 | L2618 | A2618 AL-2618-1 | 265 | 185 | 95 | L2618-1 | A2618-1 AL-2618-2 | 265 | 185 | 130 | L2618-2 | A2618-2 AL-2823 | 280 | 230 | 110 | L2823 | A2823 AL-3021 | 300 | 210 | 100 | L3021 | A3021 AL-3021-1 | 300 | 210 | 130 | L3021-1 | A3021-1 AL-3123 | 310 | 230 | 120 | L3123 | A3123 AL-3220 | 320 | 200 | 90 | L3220 | A3220 AL-3212 | 320 | 120 | 90 | L3212 | A3212 AL-3323 | 330 | 230 | 110 | L3323 | A3323 AL-3423 | 340 | 235 | 95 | L3423 | A3423 AL-3423-1 | 340 | 235 | 120 | L3423-1 | A3423-1 AL-3423-2 | 340 | 235 | 135 | L3423-2 | A3423-2 AL-3423-3 | 340 | 235 | 160 | L3423-3 | A3423-3 AL-3612 | 360 | 120 | 80 | L3612 | A3612 AL-3616 | 360 | 160 | 95 | L3616 | A3616 AL-3616-1 | 360 | 160 | 135 | L3616-1 | A3616-1 AL-4023 | 400 | 230 | 110 | L4023 | A4023 AL-4026 | 400 | 260 | 110 | L4026 | A4026 AL-4031 | 400 | 310 | 110 | L4031 | A4031 Diecast aluminum enclosure, High Quality, Made in China. IP66 Outdoor Enclosure. Pole Mount Enclosure. Flanged plastic boxes. NEMA 6P Enclsoure. nema enclosure aluminum enclosures outdoor electronics enclosure electronics enclosure box aluminum electronics enclosure watertight aluminum box aluminum electronic enclosures aluminum electronics enclosure
