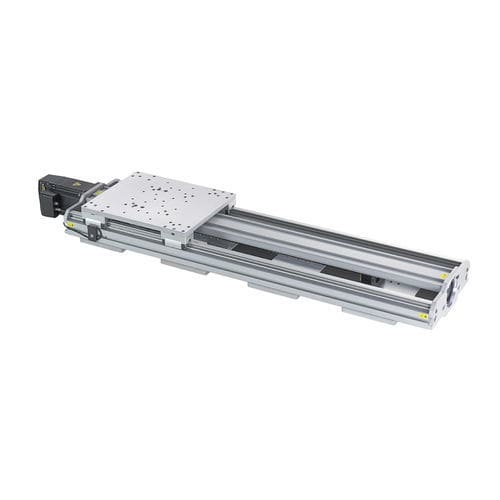

Linear positioning stage LRU-E Seriesmotorized1-axisintegrated recirculating ball bearing guide
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- motorized
- Number of axes
- 1-axis
- Other characteristics
- with built-in stepper motor, with built-in encoder, integrated recirculating ball bearing guide
- Stroke
250 mm, 500 mm, 1,000 mm, 1,500 mm, 2,000 mm
(9.843 in, 19.685 in, 39.37 in, 59.055 in, 78.74 in)- Speed
Max.: 400 mm/s
Min.: 0 mm/s
- Repeatability
3 µm
- Load
Max.: 500 kg
(1,102.31 lb)Min.: 0 kg
(0 lb)
Description
Zaber's LRU-E Series are motorized linear stages with built-in motor encoders. They support up to 500 kg loads and output up to 2850 N of thrust while having long lifetime capabilities. They provide a large stage top and footprint. These stages integrate well with the T-slot ecosystem. They also share mounting patterns with other Zaber devices for easily building XY systems, gantries, or gimbals. These mounting patterns also support popular third party cobot arms. Some multi-axis configurations may require additional accessories; please contact Zaber Technical Support to ensure the correct ones are selected.
