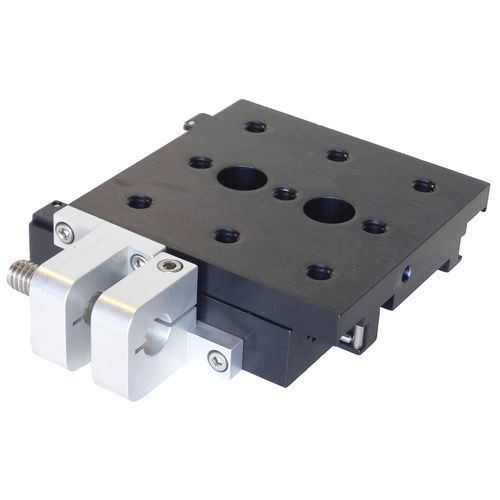

Translation stage TSB seriessingle-axiswith ball bearingmicrometric
Add to favorites
Compare this product
Characteristics
- Orientation
- translation
- Number of axes
- single-axis
- Other characteristics
- micrometric, with ball bearing
- Stroke
25 mm, 28 mm, 50 mm, 60 mm
(0.984 in, 1.102 in, 1.969 in, 2.362 in)- Repeatability
10 µm
- Load
Max.: 10 kg
(22.05 lb)Min.: 0 kg
(0 lb)
Description
The TSB series is a unit manufactured by Zaber.
They are ball bearing linear stages having a 28 mm or 60 mm of travel that aree compatible with T-LA series miniature linear actuators.
It has a capacity of 10 kg with manual micrometer heads of 25 mm or 50 mm of travel and 0.01 mm resolution.
