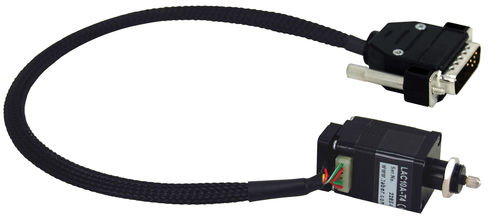

Linear actuator LAC series
steppercompactmotorized

Linear actuator - LAC series - Zaber Technologies - Vancouver, BC - stepper / compact / motorized
Linear actuator - LAC series - Zaber Technologies - Vancouver, BC - stepper / compact / motorized
Add to favorites
Compare this product

Characteristics

Movement
linear
Technology
stepper
Other characteristics
compact, motorized
Stroke

10 mm
(0.394 in)

Force

40 N

Speed

Max.: 0.01 m/s
(0.04 ft/s)

Min.: 0 m/s
(0 ft/s)

Description

The LAC Series compact motorized linear actuators have limited space in various applications. It was manufactured by Zaber company. The unit have a resolution down to 0.024 µm having a multiple tip. Its compact design makes it suitable for OEM or lab applications involving tight spaces and ultra-high precision. It has integrated lead screw and lead nut that enables a very compact linear actuator design. The unit's standard mounting interface replaces most manual micrometer heads. It is designed for use with the A-MCA series stepper motor controllers. Further, the M3, flat tip, or ball tip interface option is included in each of every actuator. The D-sub 15 connector has locking capability to prevent accidental unplugging.
