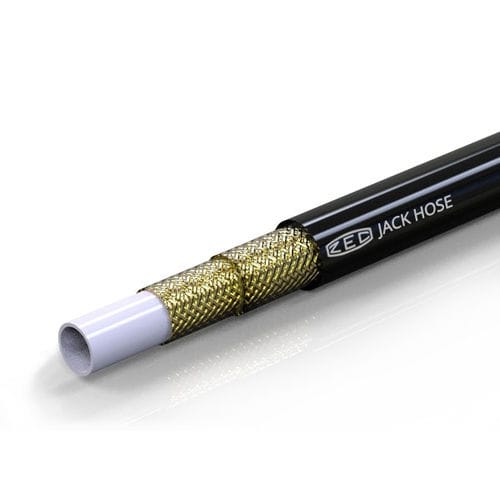

Hydraulic hose MT seriessteelpolyurethanethermoplastic
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- steel, polyurethane, thermoplastic, polyamide, aramid
- Applications
- high-pressure
- Inner diameter
Min.: 6.4 mm
(0.252 in)Max.: 13 mm
(0.512 in)- Outer diameter
Min.: 13.5 mm
(0.531 in)Max.: 22 mm
(0.866 in)- Pressure
Min.: 700 bar
(10,152.642 psi)Max.: 1,750 bar
(25,381.604 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Inner core made of polyamide, reinforcement of Aramid fiber and/or high tensile steel braids and exterior cover made of antiabrasion polyurethane, resistant to hydrolysis and stabilized for outdoor applications, pinpricked on request for the conduction of air and compatible gases.
