Gas hose CO2
thermoplasticpolyurethanepolyester

gas hose
gas hose
gas hose
Add to favorites
Compare this product


Characteristics

Use
for gas
Material
polyester, polyurethane, thermoplastic
Applications
high-pressure, fire, for marine applications
Other characteristics
standard, perforated
Inner diameter

Min.: 4.8 mm
(0.189 in)

Max.: 16.3 mm
(0.642 in)

Outer diameter

Min.: 10 mm
(0.394 in)

Max.: 23.5 mm
(0.925 in)

Pressure

Min.: 105 bar
(1,522.896 psi)

Max.: 350 bar
(5,076.321 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

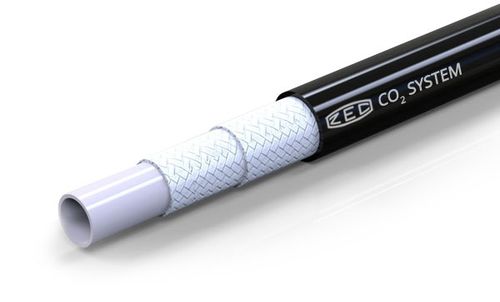

Inner core in thermoplastic polymer, polyester textile reinforcement and exterior covering in antiabrasion polyurethane and resistant to stabilized hydrolysis for outdoor applications, in environments having high humidity and saline levels, stabilized against UV rays and microorganisms-resistant, micro perforated for gas conduction. On request, twin-line or multi-line version. Applications: hoses of the CO² SYSTEMS series have been created for CO² fire extinguishing medium pressure systems in MARINE environments.
