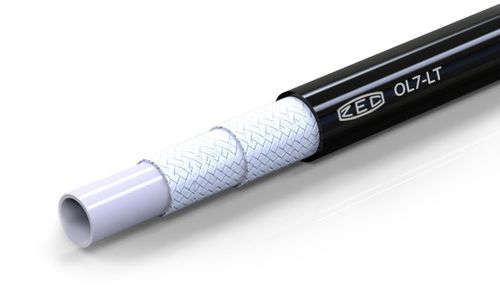

Hydraulic hose OL7 seriesfor airfor oilthermoplastic
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic, for air, for oil
- Material
- polyester, polyurethane, thermoplastic
- Applications
- for high pressure, marine
- Other characteristics
- waterproof
- Inner diameter
Max.: 25.6 mm
(1.008 in)Min.: 3.5 mm
(0.138 in)- Outer diameter
Max.: 33.6 mm
(1.323 in)Min.: 8.5 mm
(0.335 in)- Pressure
Max.: 250 bar
(3,625.943 psi)Min.: 70 bar
(1,015.264 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -54 °C
(-65.2 °F)
Description
Inner core in thermoplastic polyester, reinforcement in polyester textile and exterior covering in antiabrasion polyurethane stabilized against UV rays and resistant to ozone, microorganisms and hydrolysis, suitable for outdoor applications in environments having high humidity and saline levels, pinpricked for conduction of air and compatible gases.
Applications:
Hoses of the OL7-LT Series have been created for high pressure hydraulic applications in MARINE environments; this type of hose offers good flexibility at low temperatures and is particularly recommended for operating machines and lift trucks, which work at low temperatures.
