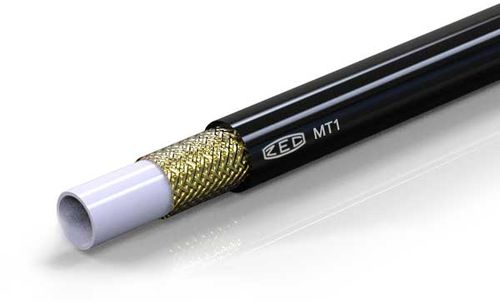

Oil hose MT1 seriessteelpolyurethanepolyamide
Add to favorites
Compare this product
Characteristics
- Use
- for oil
- Material
- steel, polyurethane, polyamide
- Applications
- for lubrication
- Other characteristics
- perforated
- Inner diameter
Max.: 32 mm
(1.26 in)Min.: 3.5 mm
(0.138 in)- Outer diameter
Max.: 40 mm
(1.575 in)Min.: 7.5 mm
(0.295 in)- Pressure
Max.: 500 bar
(7,251.887 psi)Min.: 70 bar
(1,015.264 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Inner core in polyamide, reinforcement in high tensile steel braid and exterior covering in antiabrasion polyurethane, micro perforated on request for the conduction of air and compatible gases.
Applications:
hoses of the MT1 series have been created for the high pressure conduction of Polyols, Solvents, Paints and compatible gases.
