Lifting axis manipulator ZH90pneumaticelectricelectropneumatic
Add to favorites
Compare this product
Characteristics
- Drive type
- pneumatic, electric, electropneumatic
- Gripping device
- with gripping tool
- Applications
- handling, positioning, for mechanical components, for materials handling, for auto parts handling, for bodywork, parts, industrial, for metal panels, for forged parts, for plates, for windows and doors, fiberglass, battery cell, for large glass panels
- Configuration
- overhead rail-mounted
- Other characteristics
- ergonomic, balanced, custom-made, for the automotive industry, with electronic control, modular, rigid, column lift, for foundry applications, lifting axis
- Domain
- for the packaging industry, industrial, for the food industry, for the automotive industry, for the pharmaceutical industry, for the metallurgical industry, for logistics, for the steel industry, for foundry applications, for electric vehicles, railway, for heavy-duty applications, for the glass industry, for the aeronautical industry, for forging
- Carrying capacity
1,200 kg
(2,645.5 lb)- Maximale stroke
1,600 mm
(63 in)- Pressure
6 bar
(87 psi)- Rotation
360 °
Description
The ZH90 lifting axis is a linear lifting system from Zeilhofer Handhabungstechnik for the pendulum-free lifting and positioning of loads up to 1,200 kg.
The standard working stroke is 1,600 mm and can be extended with options such as the double stroke. The patented aluminium construction weighs just 70 kg in the basic unit and is driven pneumatically, electro-pneumatically or electrically.

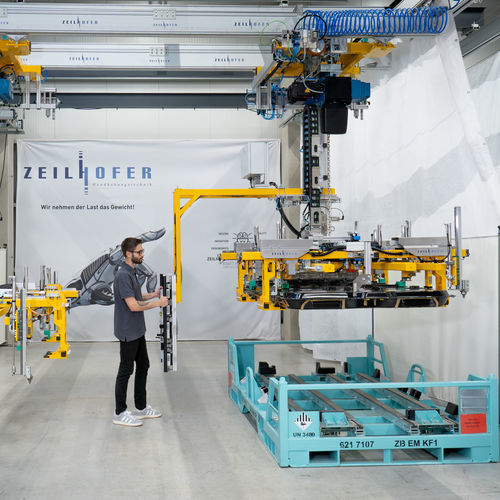

Thanks to its modular design, the ZH90 can be configured from a simple lifting tool to a fully integrated system. It is used primarily in automotive final assembly and e-mobility production, for example when handling high-voltage batteries, as well as in logistics, special machinery, foundry and the railway industry. The ZH90 is manufactured at our site in Holzkirchen, Germany.
01 MAXIMUM LOAD CAPACITY
The ZH90 lifts loads up to 1,200 kg, offering one of the highest load capacities in its class, completely pendulum-free and with consistent precision throughout the entire stroke.
02 PRECISE POSITIONING
Heavy loads are lifted seemingly effortlessly and placed exactly in the desired position, with repeatable accuracy and without any physical effort for the operator.
03 MODULAR SYSTEM
Its modular design lets the ZH90 adapt flexibly to your requirements, from a simple lifting aid to a fully integrated system.
04 ERGONOMICS & SAFETY
Sustainably reduces physical strain. Integrated safety devices and a maintenance-friendly design ensure trouble-free operation.
05 DRIVE VERSATILITY
Choose between pneumatic, electro-pneumatic or electric drive, optimised for your energy supply and process requirements.
06 COMPLETE SOLUTION
From us you receive not just the ZH90 lifting axis but a complete solution, from the steel structure and the rail system to the matching lifting aid.
The standard working stroke is 1,600 mm and can be extended with options such as the double stroke. The patented aluminium construction weighs just 70 kg in the basic unit and is driven pneumatically, electro-pneumatically or electrically.
Thanks to its modular design, the ZH90 can be configured from a simple lifting tool to a fully integrated system. It is used primarily in automotive final assembly and e-mobility production, for example when handling high-voltage batteries, as well as in logistics, special machinery, foundry and the railway industry. The ZH90 is manufactured at our site in Holzkirchen, Germany.
01 MAXIMUM LOAD CAPACITY
The ZH90 lifts loads up to 1,200 kg, offering one of the highest load capacities in its class, completely pendulum-free and with consistent precision throughout the entire stroke.
02 PRECISE POSITIONING
Heavy loads are lifted seemingly effortlessly and placed exactly in the desired position, with repeatable accuracy and without any physical effort for the operator.
03 MODULAR SYSTEM
Its modular design lets the ZH90 adapt flexibly to your requirements, from a simple lifting aid to a fully integrated system.
04 ERGONOMICS & SAFETY
Sustainably reduces physical strain. Integrated safety devices and a maintenance-friendly design ensure trouble-free operation.
05 DRIVE VERSATILITY
Choose between pneumatic, electro-pneumatic or electric drive, optimised for your energy supply and process requirements.
06 COMPLETE SOLUTION
From us you receive not just the ZH90 lifting axis but a complete solution, from the steel structure and the rail system to the matching lifting aid.
VIDEO
Other Zeilhofer Handhabungstechnik GmbH & Co. KG products
Lifting Axis Manipulator
Related Searches
- Lifting system
- Zeilhofer Handhabungstechnik pneumatic manipulator
- Zeilhofer Handhabungstechnik materials handling manipulator
- Zeilhofer Handhabungstechnik industrial manipulator
- Zeilhofer Handhabungstechnik manipulator with gripping tool
- Zeilhofer Handhabungstechnik handling manipulator
- Pillar manipulator arm
- Zeilhofer Handhabungstechnik ergonomic manipulator
- Industrial lifter
- Zeilhofer Handhabungstechnik positioning manipulator
- Electric manipulator arm
- Mobile lifter
- Zeilhofer Handhabungstechnik lifting manipulator
- Lifting manipulator arm
- Zeilhofer Handhabungstechnik articulated manipulator
- Handling lifting system
- Zeilhofer Handhabungstechnik balanced manipulator
- Electric lift system
- Gripping manipulator arm
- Zeilhofer Handhabungstechnik manipulator for the food industry
