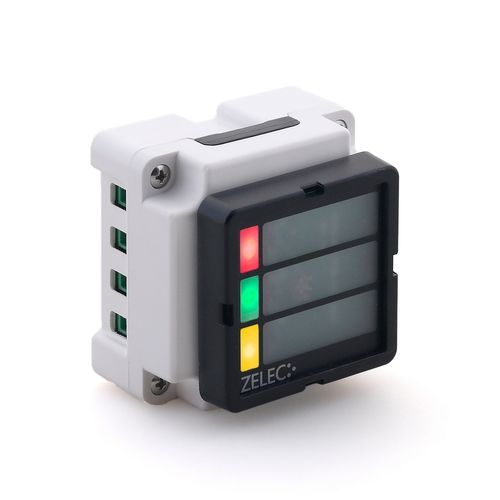

Signaling indicator light SIGA1AC1T

steadyLEDpanel-mount

The Sigal® range is an innovative solution of annunciator panel. These led panel indicators are designed to provide visual information about the status of equipment in an electrical installation. The SIGA indicator panel is ideally suited to industrial and tertiary environments. The SIGA indicator provides information on the operating status of 3 separate pieces of equipment. It can also be used to indicate the position of a circuit breaker: open, closed or tripped. The integrated label holder can be easily customised to suit your installation. These control and annunciator panels also feature a test function. Led colour: red / green / yellow Operating voltage: 230 Vac Vpk voltage: 275 Vac Usage frequency: 50/60 Hz Consumption: ≤ 1 W / 1 VA Led service life: 100 000 hours Connections: “Push-in” connection Connection terminals: Terminals for 0.5 mm² to 1.5 mm² cable (rigid or flexible) Length to be stripped: 10 mm Fixation: Clamping nut for faceplate or door mounting Drilling diameter: Ø22.5 mm Maximum nut tightening torque: 2.0 N.m Precautions for use: Maximum sheet thickness 2.5 mm Dimensions (L x W x D): 58 x 58 x 31 mm (back panel) / 48 x 48 mm (front panel) Weight: 84 g Colour: Black front panel / white rear housing Materials: ABS765, UL94HB Operating temperature: -20°C to +60°C Storage temperature: -20°C to +70°C
