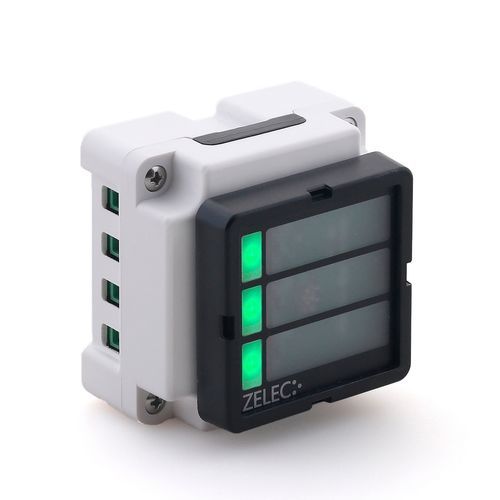

Signaling indicator light SIGA1AC1G

steadyLEDpanel-mount

The Sigal® range is an innovative solution of annunciator panel. These led panel indicators are designed to provide visual information about the status of equipment in an electrical installation. The SIGA indicator panel is ideally suited to industrial and tertiary environments. The SIGA indicator provides information on the operating status of 3 separate pieces of equipment. The integrated label holder can be easily customised to suit your installation. These control and annunciator panels also feature a test function. Lamp test function All the products in the range have a “test” function. The test terminal connected to a push button allow to light on the 3 leds at the same time. Square front panel, round cut-out The front of the product is square, while the back is round. Drilling is therefore easy, using a Ø22.5 mm punch. This guarantees a straight indicator light position, unlike square cut-outs. This innovation considerably simplifies the mounting process on an electrical cabinet or enclosure. Led colour: Green / green / green Operating voltage: 230 Vac Vpk voltage: 275 Vac Usage frequency: 50/60 Hz Consumption : ≤ 1 W / 1 VA Led service life: 100 000 hours Connections: “Push-in” connection Connection terminals: Terminals for 0.5 mm² to 1.5 mm² cable (rigid or flexible) Length to be stripped: 10 mm Fixation: Clamping nut for faceplate or door mounting Drilling diameter: Ø22.5 mm Maximum nut tightening torque: 2.0 N.m Precautions for use : Maximum sheet thickness 2.5 mm
