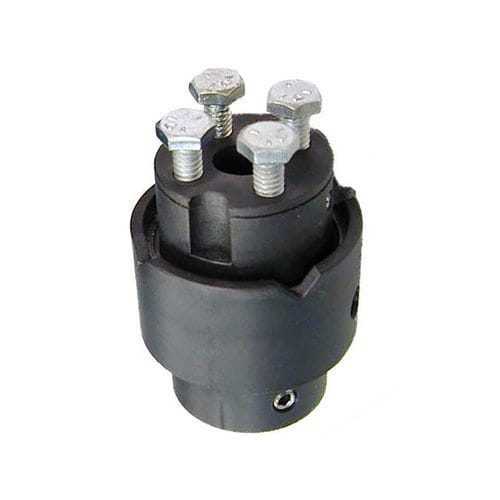

Mechanical torque limiter H-TLC serieslow-inertiasafetycompact
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Other characteristics
- low-inertia, safety, compact, spring, with elastic coupling, disc spring, with free rotation, load-separating, through-bore, steel, stainless steel
- Applications
- for drills, for extruders
- Torque
Max.: 56.5 Nm
(41.672261 ft.lb)Min.: 0.5 Nm
(0.368781 ft.lb)- Diameter
Max.: 30 mm
(1.18 in)Min.: 8 mm
(0.31 in)- Rotational speed
Max.: 2,000 rpm
(12,566.3706 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
When selecting through shaft mounting type B, machine elements, such as sprockets or pulleys, are mounted on the face of the H-TLC. Versions with actuating disc (BD) are optionally available.
Designed for use in through-shaft connections
Bore range from ø8 mm to ø30 mm
Temperature range from -40 °C to 82 °C
Compensation of shaft misalignments possible
High chemical resistance, use in oil possible
Catalogs
Overload Safety Couplings
12 Pages
