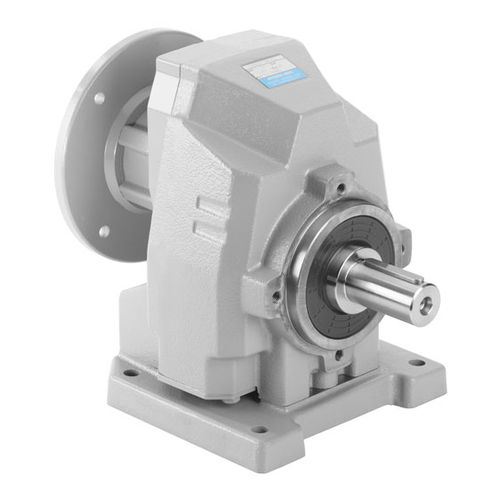

Gear train gearbox C Seriescoaxialsolid-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- gear train
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm, 50 - 100 Nm, 1 - 2 kNm, 2 - 5 kNm
- Performance
- high-efficiency
- Other characteristics
- compact, modular, IEC B14
- Gear ratio
Max.: 212 unit
Min.: 2.76 unit
Description
C Series Gearboxes are modular compact and high efficient products which are produced cooperatively by ZET Gearboxes and Hydromec Italian company. All gearboxes are cast iron and highly resistant. All the Gears are made heat treated and precise CNC profile grounded.
Center distance of gears is increased and load-carrying capacity is maximized in gearboxes. Bearings which have high radial and axial load carrying capacity are used in output shaft. With their modular foot and flange mounting option they have 100% interchangeability with the other products on market. Motor - gearbox connections are compact and IEC B5-B14 standard in C series.
