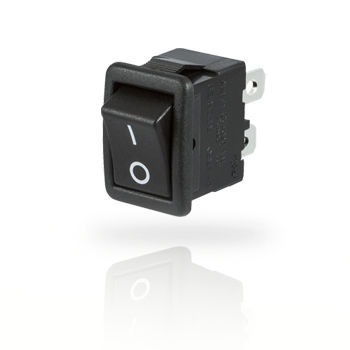

Rocker switch LR Series
single-polebipolarsplash-resistant

rocker switch
rocker switch
Add to favorites
Compare this product


Characteristics

Type
rocker
Number of poles
single-pole, bipolar
Protection level
splash-resistant
Other characteristics
illuminated, non-illuminated, miniature, compact
Primary current

8 A, 10 A

Voltage

125 V

Description

Rocker LR Series 10A switching in a compact miniature package Single-pole and double-pole configurations Lighted and non-lighted versions available Variety of terminals available Industry-standard cut-out dimensions Mechanical life: min. 100,000 operations Splash-proof option available Electrical Specifications Inrush Rating 24 A Dielectric Strength 1000 VAC for 1 minute Insulation Resistance 100 MΩ min at 500 VDC Initial Contact Resistance 0.020 Ω max Material and Environmental Specifications Actuator (non-lighted) Nylon 66 94V-2 Actuator (lighted) Polycarbonate Base Nylon 66 94V-2 Spring Steel Wire Contacts Silver Alloy Movable Arm Copper Alloy Terminals Tin-Plated Copper Alloy Operating Temperature Range -20 OC to +65 OC (-4 OF to +149 OF)

Catalogs

No catalogs are available for this product.

See all of ZF switches and sensors‘s catalogs
