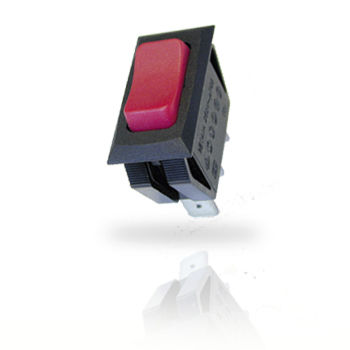

Rocker switch CR Series
single-polepanel-mount3-position

rocker switch
rocker switch
Add to favorites
Compare this product


Characteristics

Type
rocker
Number of poles
single-pole
Other characteristics
panel-mount, 3-position, low-profile
Protection level
rugged, IP42
Current

16 A, 20 A

Voltage

125 V, 250 V

Description

Rocker CR Series Rugged design switching up to 20 A 2-color molded button for maximum visibility Lighted and non-lighted versions available Degree of protection up to IP42 possible 2 and 3-position configurations Mechanical life min. 100,000 operations Electrical Specifications Inrush Rating 24 A Dielectric Strength 1000 VAC for 1 minute Insulation Resistance 100 MΩ min at 500 VDC Initial Contact Resistance 0.020 Ω max Material and Environmental Specifications Actuator, non-lighted Nylon 66 94V-2 Actuator, lighted Polycarbonate Base Nylon 66 94V-2 Spring Steel Wire Contacts Silver Alloy Movable Arm Silver-Plated Copper Alloy Terminals Tin-Plated Copper Alloy Operating Temperature Range -20 OC to +85 OC (-4 OF to +185 OF)
