RF switch
levermomentarylatching

RF switch
RF switch
RF switch
RF switch
Add to favorites
Compare this product


Characteristics

Type
lever
Other characteristics
RF, momentary, latching

Description

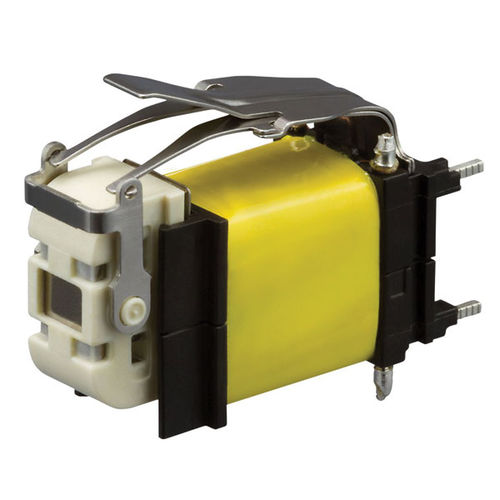

Energy Harvesting Generators Description The core element of our Energy Harvesting technology, the generator is available in monostable (momentary) or bistable (latching) forms, with or without RF electronics. Based on the inductive principle, the required RF energy is generated by the actuation of the patented mechanism, which converts the mechanical energy into electrical energy in the form of an RF signal. Note: Standalone generators should be used with suitable RF electronics. The generator module is supplied with RF electronics using the ZF proprietary protocol. The integration of a custom protocol is possible (subject to minimum order quantity). See table at base of page for more information on standard products. Technical Specifications Dimensions: 20.1 x 7.1 x 14.3 mm (monostable) Dimensions: 20.1 x 7.3 x 19.3 mm (bistable) Dimensions: 21.7 x 7.3 x 23.3 mm (generator module)-40 to +85 °C Frequency bands: 868.3 or 915 MHz (generator module) Energy Generated: 2x min. 0.33 mWs (monostable) Energy Generated: 1x min. 0.33 mWs (bistable) Lifetime: up to 1,000,000 operations (momentary) Lifetime: Min. 100,000 operations (bistable) Operating force: approx.. 13 N (momentary) Operating force: 5 – 16 N (bistable, lever length-dependent) Temperature range: -40 to +85 °C (-40 to +185 °F)

Catalogs

No catalogs are available for this product.

See all of ZF switches and sensors‘s catalogs
