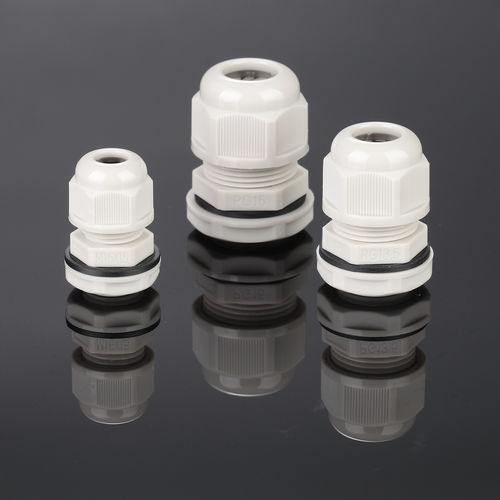

Nylon cable gland PG-Type
IP68fire-resistantUV-resistant

nylon cable gland
nylon cable gland
nylon cable gland
nylon cable gland
Add to favorites
Compare this product


Characteristics

Material
nylon
Protection level
IP68, fire-resistant, UV-resistant, corrosion-resistant, increased safety, weatherproof
Other characteristics
threaded, metric, hexagonal, halogen-free, for control panels, with sealing cap, for photovoltaic modules, threaded
Cable diameter

Max.: 44 mm
(1.73 in)

Min.: 3 mm
(0.12 in)

Thread diameter

Max.: 59.3 mm
(2.33 in)

Min.: 12.5 mm
(0.49 in)

Operating temperature

Max.: 120 °C
(248 °F)

Min.: -20 °C
(-4 °F)

Description

■ Material: Parts A, C, E are made of UL approved nylon PA66, parts B and D are made of nitrile butadiene rubber (NBR). ■ Thread spec.: Metric, PG, G, NPT. ■ Working temperature: -40℃ to 100℃ in static state, instantaneous heat resistance up to 120℃; -20℃ to 80℃in dynamic state, instantaneous heat resistance up to 100℃. ■ Characteristics: Special design of clamping die, sealing nut and rubber part, applicable for vibrating machine. Large range in clamping the cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent. ■ Color: Black(RAL9005), light grey (RAL7035), silver (RAL7001) as well as special colors that can be designed at request.
