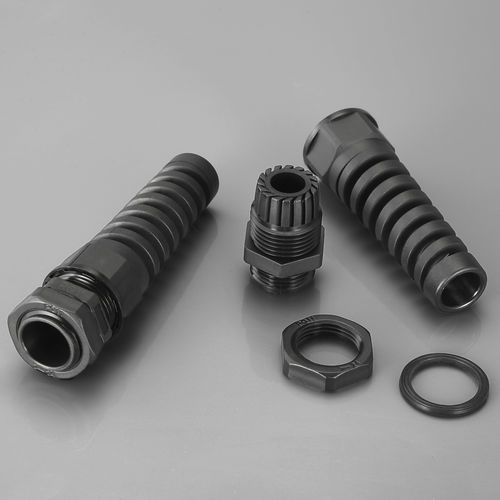

Cable gland with spiral flex protector
nylonwaterproofhalogen-free

cable gland with spiral flex protector
cable gland with spiral flex protector
cable gland with spiral flex protector
cable gland with spiral flex protector
cable gland with spiral flex protector
Add to favorites
Compare this product


Characteristics

Material
nylon
Protection level
waterproof, halogen-free, fire-resistant, UV-resistant, corrosion-resistant, increased safety, weatherproof
Other characteristics
with spiral flex protector
Cable diameter

Max.: 18 mm
(0.71 in)

Min.: 3 mm
(0.12 in)

Thread diameter

Max.: 28.3 mm
(1.11 in)

Min.: 12 mm
(0.47 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Thread: Metric, PG, G(PF), and NPT thread Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc). Protection degree: IP68 Working temperature: -40℃ to 100℃ Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
