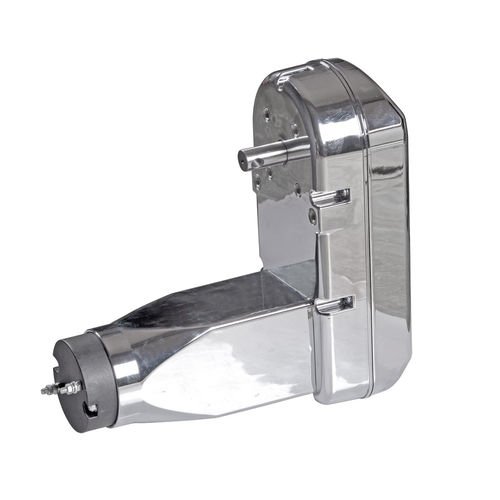

Truck gear-motor 80ZYT-12/122WJDCparallel-shaft100 W...500 W
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Shaft orientation
- parallel-shaft
- Power
- 100 W...500 W
- Voltage
- 24 V, 12 V
- Torque
- 50 - 100 Nm
- Performance
- high-efficiency
- Product applications
- industrial, for trucks
- Gear ratio
60 unit
Description
900W / 1.2HP TARP GEARED MOTOR 80ZYTS-12/122WJ SPECS AND FEATURE:
· Voltage 12V DC ( or 24V DC )
· No-load Speed 53rpm
· Input Power 900W / 1.2HP
· After Gearbox Output Power 422.26W (Max. Efficiency Point )
· Rated Speed 43rpm(Max. Efficiency Point )
· Rated Torque 93.81N.m(Max. Efficiency Point )
· Gearmotor Max. Efficiency 66.07%
· Gearbox Reduction Ratio 73 : 1
· With a brake
Replaces Aero Power Plus, Donovan 1704878, 1800716, 1801965*, 1802061, 1802066, Roll-Rite #1030/1031, US Tarp #13732, 13957, 15275, 15938, 15364, 13655; Pulltarps 517-0906/517-0909; SHUR-CO 1802066,1703823; SuperWinch 90-33319/90-33295; Tarps and Beyond 1000XT/2000XT; Buyers Products 5541095,5543095, 5543895, 5543965/5541065, TSI Apache, Tomahawk, Enforcer, Automann 577.99701, 577.99701HD, 577.99701P, 577.99702P, 577.99704P.
